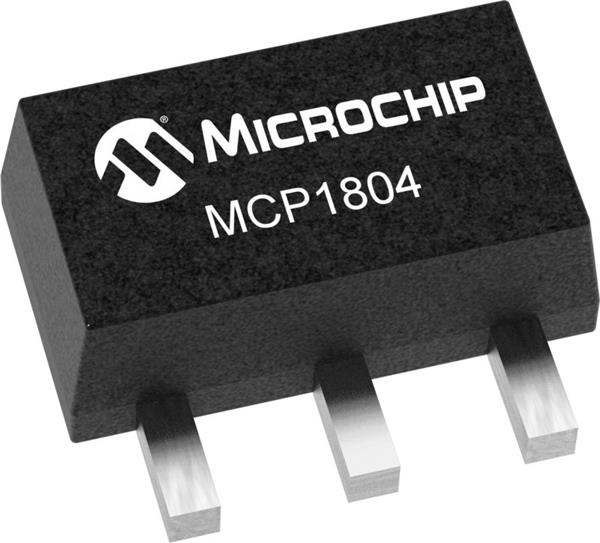

Microchip Technology MCP1804T-J002I/DB LDO Regulators 150mA LDO, Vin 28V max, Vout =18.0V

Polarity: Positive

Tolerance: 2 %

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 150 mA

Output Voltage: 18 V

Dropout Voltage: 2.2 V

Line Regulation: 0.15 %/V

Load Regulation: 180 mV

Number of Outputs: 1 Output

Quiescent Current: 50 uA

Input Voltage - Max: 28 V

Input Voltage - Min: 2 V

Output Voltage Range: 1.8 V to 18 V

Dropout Voltage - Max: 2.7 V

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 50 dB
