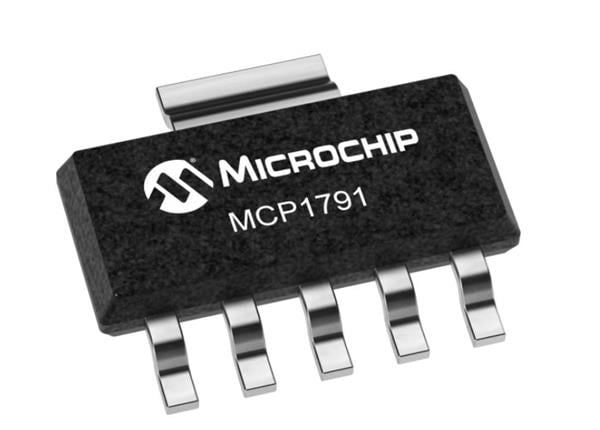

Microchip Technology MCP1791T-3002E/DC LDO Voltage Regulators HI VLTG LDO 50 mA

Polarity: Positive

Output Type: Fixed

Unit Weight: 250 mg

Mounting Style: SMD/SMT

Output Current: 70 mA

Output Voltage: 3 V

Dropout Voltage: 700 mV

Line Regulation: 0.0002 %/V

Load Regulation: 0.2 %

Number of Outputs: 1 Output

Quiescent Current: 130 uA

Input Voltage - Max: 30 V

Input Voltage - Min: 6 V

Dropout Voltage - Max: 1.3 V

Ib - Input Bias Current: 70 uA

Voltage Regulation Accuracy: 2.5 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
