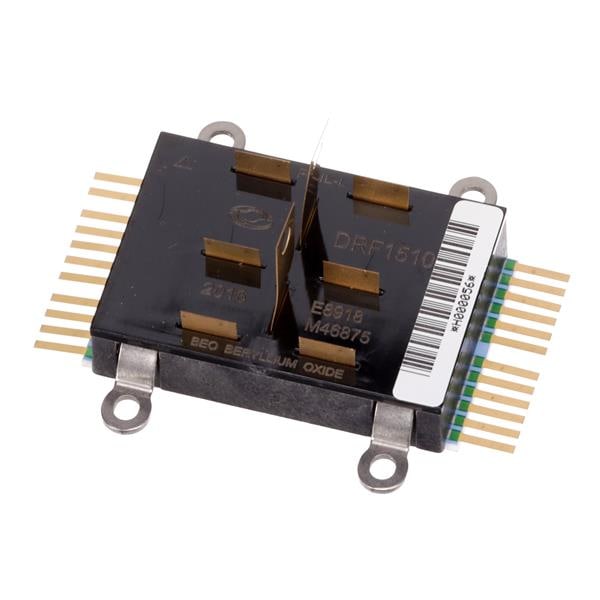

Microchip Technology DRF1510 Full-Bridge RF MOSFET (VDMOS) Full-Bridge Hybrid 500 V 4500 W 30 MHz T102

Fall Time: 2.5 ns

Rise Time: 35 ns

Logic Type: CMOS

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 15 A

Number of Drivers: 4 Driver

Number of Outputs: 4 Output

Input Voltage - Max: 15 V

Input Voltage - Min: 10 V

Supply Voltage - Max: 15 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 550 W

Operating Supply Current: 15 mA

Maximum Turn-On Delay Time: 55 ns

Maximum Turn-Off Delay Time: 70 ns

Maximum Operating Temperature: + 175 C

Rds On - Drain-Source Resistance: 330 mOhms
