Cable: N/A
Preamp: Integral
Weight: 1 kg (2 lb) with flow housing
Accuracy: ± 1% of reading or 1 ppb, whichever is greater ± 0.5 °C
Flow Rate: 0.79 gal/h – 15.85 gal/h (50 mL/min – 1,000 mL/min)

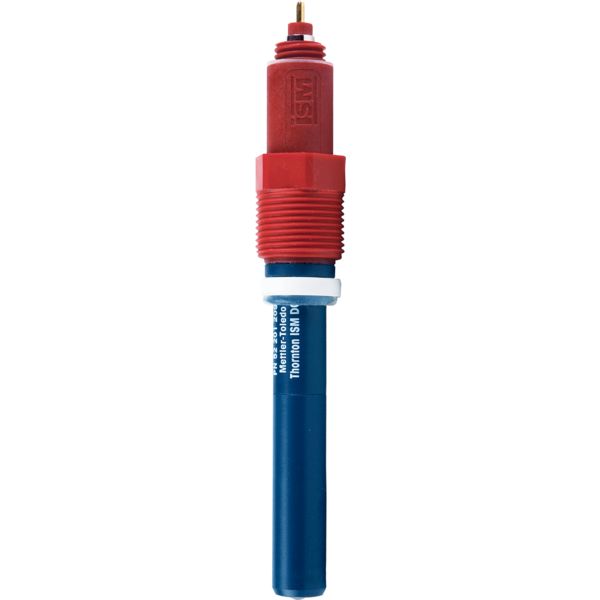

Model Family: UPW DO sensors
Response Time: 98% in 90 seconds
Sensor Length: 210 mm
Material Number: 52201209
Operating Range: 0 ppb – 10,000 ppb
Cable Connection: 1/4” NPT(M)
Wetted Materials: PTFE membrane reinforced with stainless steel and silicone rubber, Viton® and silicone rubber o-rings Polyacetal flow housing Polyphenylene sulfide probe body
Measurement Parameter: Oxygen
Measurement Technology: Amperometric/Polarographic
ISM (Digital) or Analog: ISM (Digital)
Autoclavable/Sterilizable: No
Primary Media/Application: Pharmaceutical Waters Power Plant Water/Steam Semiconductor Water
Measured Pressure Resistance: 0 psig – 72 psig (0 bar – 5 bar)
Intelligent Sensor Management (ISM®): Yes
Measuring Temperature Range (Celsius): 0°C – 60°C for temperature compensation can tolerate 100°C
Measuring Temperature Range (Fahrenheit): 32°F – 140°F for temperature compensation can tolerate 212°F
