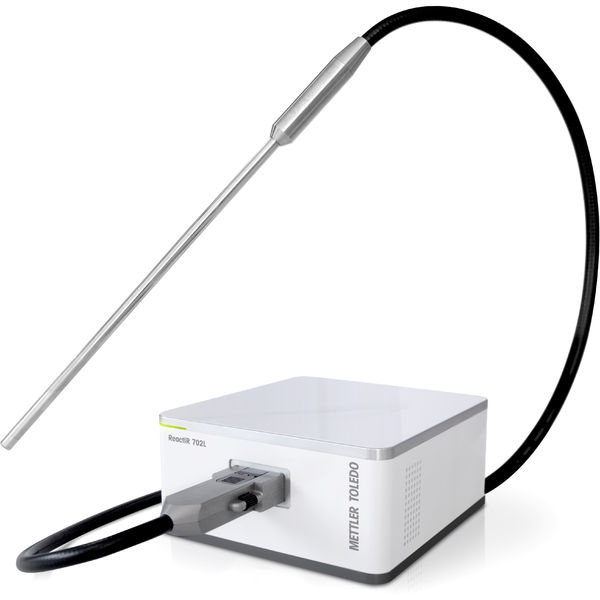

Mettler Toledo 30456495 System ReactIR 702L, TEMCT

Weight: 9.2 lb (4.2 kg)

Detector: TE MCT

Software: iC IR

For Use In: Laboratory

Resolution: 4 cm -1 maximum

Communication: USB

Probe pH Range: 1 – 14 (Diamond) 1 – 9 (Silicon)

Wetted Materials: Alloy C-22 Diamond or Silicon Gold or PTFE

Purge Requirement: No

Dimensions (HxWxD): 4 in x 8.1 in x 9.2 in (100 mm x 206 mm x 234 mm)

Probe Optical Window: 2500 – 650 cm-1 maximum (Fiber Probe) 4000 - 650cm-1 (Micro Flow Cell) 4000 – 650 cm-1 (Sentinel)

Safety Certification: CE: EN/IEC 61010-1:2012, IEC 61326 NRTL/C: UL 61010-1, CSA 22.2 No. 61010-1, EN 61326

Probe Pressure (Maximum): 206bar (Sentinel) 35bar (Micro Flow Cell) 69bar (6.3 & 9.5mm Fiber Probe)

Optical Range (Base Unit): 4000 - 800 cm-1

Laser Safety Certification: IEC 60825 (CE), 21 CFR 1040 (US)

Probe Temperature (Maximum): 180°C (Fiber Probe) 300°C (Sentinel) 60°C (Micro Flow Cell)
