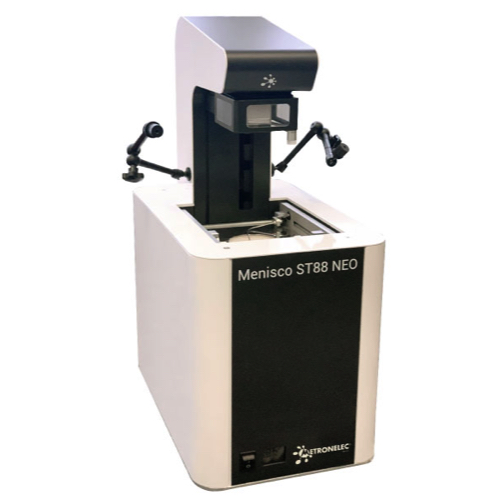

Metronelec MENISCO ST88 NEO Wetting Balance – Solderability Tester (0.1-50mm/s; 0-450°C; 2 kg)

Dipping speed: 0.1-50mm/s by step of 0.1 mm/s

Immersion depth: 0.01-15mm by step of 0.01 mm

Dwell time: 3 to 120 s (more on demand)

Max. net component weight: 35 g

Solder bath diameter: 80 mm

Solder bath capacity: 2 kg

Globule size (mm): 1, 2, 3.2 and 4mm

Temperature setting range: 0-450°C

Temperature controlling accuracy: + /- 1 ° (standard request 3°C)

Weight sensor type: LVDT

Force measurement accuracy: 0.001 mN

Force measurement range: 0.1 mN to 40 mN

Position sensor type: Hall effect

Stroke: Z-axis accuracy: 0.01 mm

Operation software: Windows 10

Data output format: Graph expressed in force or angle, table of values from clipboard or ASCI from file, report with pass/fail, video, picture.

Graph with curve: Yes

SPC monitor: Yes

Data shown with "pass and reject" after each test: Yes

Programmable of test parameter by PC: Yes

Maximum storage of tested data: No limit

Maximum test program available: No limit

Test cycle time (0402 passive): 60 s

Closed loop control (motor): Yes

Video capture: Yes

Machine dimensions (Without packaging): 310 width x 500 large x 720 height

Electrical input: 110-220vac, 50/60Hz @5amp

Nitrogen input: 4-6 bar, 4-6 mm tube

Net machine weight: 40 kg

Language: Chinese, English, French and German
