Metrix TCX 01 (TCX001-Z) Automatic recognition of SMDs
Manuafacturer: Metrix
Model : TCX 01
Item: TCX001-Z
Warranty : 12 month
- Resistance
+ Range: 600 Ω -6 kΩ -60 kΩ -600 kΩ- 6 MΩ - 60 MΩ
+ Resolution: 0.1 Ω - 1 Ω -10 Ω -100 Ω -1 kΩ -10 kΩ
+ Accuracy: ±(1.2 % reading + 2 digits)/ ±(2 % of reading + 2 digits)
- Capacitance
+ Range: 6 nF -60 nF -600 nF- 6 μF- 60 μF - 600 μF- 6 mF -60 mF
+ Resolution: 1 pF - 10 pF - 100 pF - 1 nF - 10 nF - 1 μF- 10 μF
+ Accuracy: ±(5.0 % of reading + 5 digits)/ ±(3.0 % of reading + 3 digits)/ ±(5.0 % of reading + 5 digits)
- Diode test: 2 V
I test ≈ 1 mA / U test ≈ 2.8 V
- Continuity test: Buzzer if R<30 Ω
- Automatic shutdown: 10 minutes
- Power supply: 2 x 1.5 V batteries (AG13/LR44/357A)
- Dimensions / weight: 181 x 35 x 20 mm / 65 g with batteries
State of delivery: delivered in its case with 2 x 1.5 V button cells and an operating manual.
Description
Component miniaturization has made it increasingly difficult for users to identify components quickly.

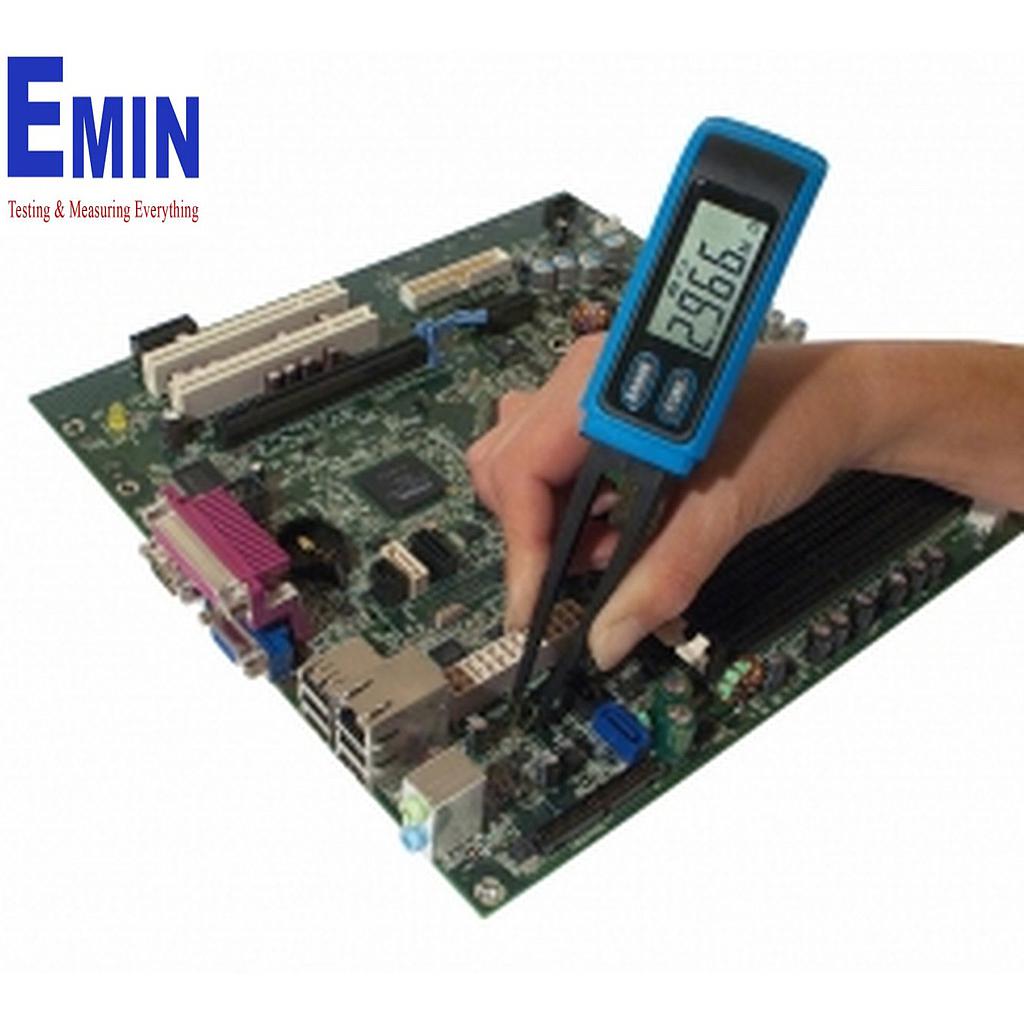

The TCX 01 surface-mount device tester automatically recognizes the component tested and displays its value on its large 6,000-count LCD screen.
The TCX 01 recognizes resistors and capacitors, and can also perform junction and continuity tests.
Its ergonomic "tweezer" design makes it easy to grip the component. Delivered complete and ready to use in a soft case, it is also equipped with a rigid cover to protect the probe tip.
