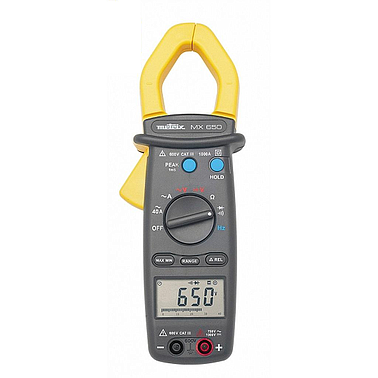

METRIX MX650 1000A AC TRMS multimeter clamp (1000 AAC)

- Clamping Ø 36 mm
- Display: 4,000 counts
- Bargraph: 42 segments
- Range change: Automatic or Manual
- Function keys: Hold-Peak - Max/Min - ∆Rel - Range
- IEC 61010-1 and IEC 61010-2-032 safety norms" Cat.III, 600 V
- Operating temperature: 0 to 40°C (<70% HR)
- Storage temperature: -10 to 60°C (<80% HR)
- Power supply: 1 x 9 V 6 LF22
- Battery charge life: 180 h
- Auto cut-off: 30 min., deactivatable
- Dimensions: 246 x 93 x 43 mm/ Weight: 400 g
TECHNICAL SPECIFICATIONS
- AC current
+ Measuring range: 0.05 to 1000 A (in 3 calibres)
+ Basic accuracy: 1.9%L + 5D
+ Bandwidth: 50 Hz to 1 kHz
+ Protection: 1000/1500 ARMS
- AC voltage
+ Measuring range: 0.5 V to 750 V (in 2 calibres)
+ Basic accuracy: 2.5%L + 10D
+ Bandwidth: 50 Hz to 1 kHz
+ Input impedance: 10 MΩ
+ Protection: 1000 VRMS
- DC voltage
+ Measuring range: 0.2 to 1000 V (in 2 calibres)
+ Basic accuracy: 0.75%L + 2D
+ Protection: 1000 VRMS
- Resistance
+ Measuring range: 0.2 to 4000 Ω
+ Basic accuracy: 1%L + 2D
+ Max. open circuit voltage: 3.3 VDC
- Diode
+ Test current: 1.7 mA max.
+ Max. open circuit voltage: 3.3 VDC
- Continuity with buzzer
+ Detection threshold: ≤100 Ω
- Frequency
+ Measuring range :Current: 20 Hz to 10.00 kHz (in 2 calibres); Voltage: 10 Hz to 10 kHz (in 2 calibres
+ Basic accuracy: 0.1%L + 1D
+ Sensitivity: 2-5 A RMS/ 5-10 V RMS
