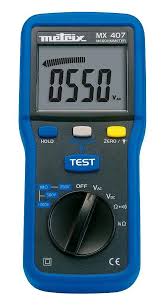

METRIX MX 407 Insulation Tester

Voltage measurement
- Range : 0 to 600 VAC/DC
- Accuracy : ±0.8 % ±3 cts (DC); ±1.2 % ±10 cts (AC)
Insulation
- Voltage testing : 250 V (10 kΩ đến 4 GΩ) / 500 V ( 10 kΩ đến 4 GΩ)/ 1000 V ( 10 kΩ đến 4 GΩ)
- Accuracy
+ Range: 4 MΩ / 40 ΜΩ ; ±2 % ±10 cts
+ Range 400 ΜΩ : ±2 %; ±5 cts
+ Range 4 GΩ :±4 %; ±5 cts
- Voltage alert indicator :Yes > 25 V
- Test inhibition :Yes > 25 V
Continuity
- Range : 0.0 to 400 Ω
- Measurement current :≥ 200 mA
- Cable compensation :Yes
- Audio signal :Audio signal triggered at < 35 Ω ±3 Ω
Resistance
- Range : 0.00 to 400 kΩ
- Accuracy :±1.2 % ± 3 cts
Other functions
- Automatic shutdown :After 10 minutes without use
- Display : LCD + Bargraph
- Backlighting :Yes
- Power supply :6 x 1.5 V AA batteries
- Dimensions :H 200 x W 92 x D 50 mm
- Weight : 700 g (with batteries)
- Electrical safety :IEC 61010 600 V CAT IV / IEC 61557-3-4


State at delivery: delivered in a hands-free bag with a set of 1.5 m leads (red/black), 1 black test probe (diameter 2 mm), 1 red crocodile clip and 1 operating manual in 5 languages.
