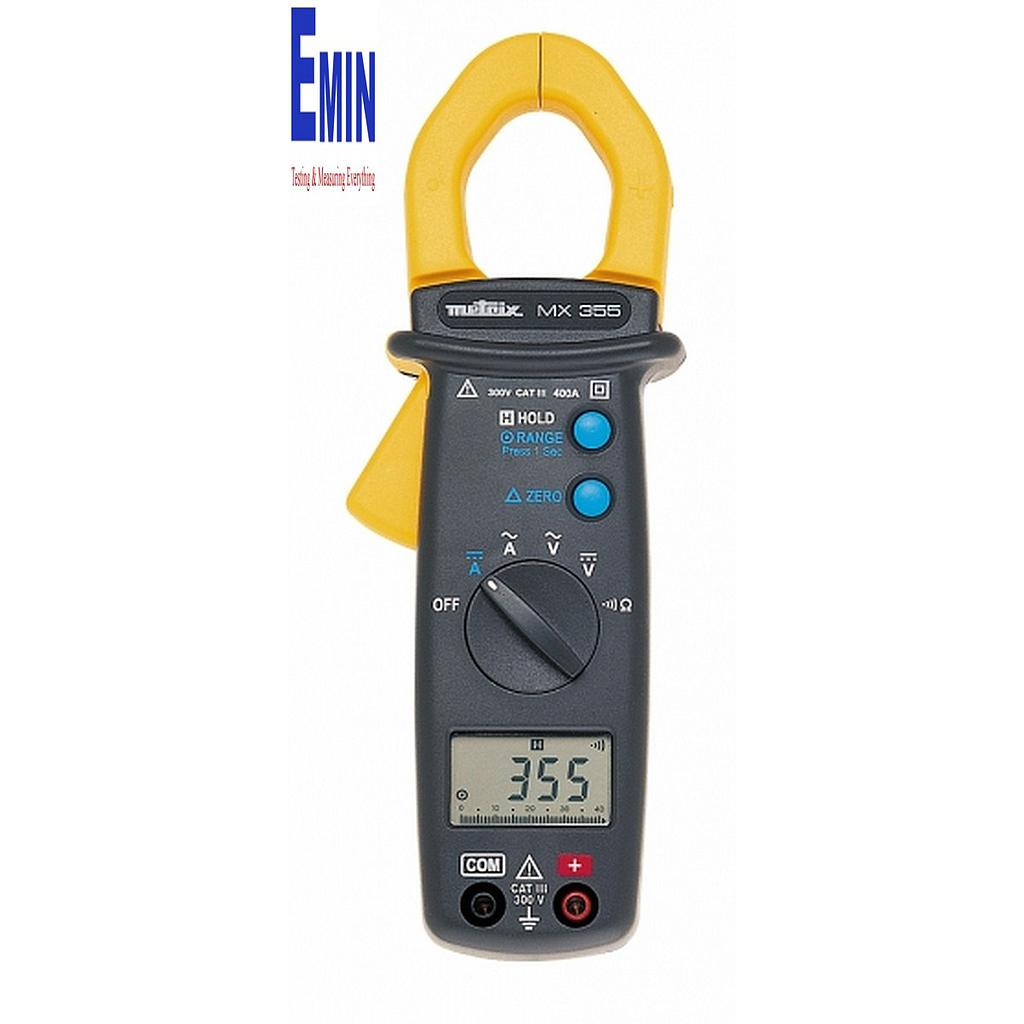

METRIX MX 355 400A AC/DC TRMS multimeter clamp (AC/DC 400A)

- Clamping Ø 30 mm
- Display: 4,000 counts
- Bargraph: 42 segments
- Range change: Automatic or Manual
- Function keys: HOLD - ∆Zero - Range
- IEC 61010-1 and IEC 61010-2-032 safety norms: Cat.III, 300 V - Cat.II, 600 V
- Operating temperature: 0 to 40°C (<70% HR)
- Storage temperature: -10 to 60°C (<80% HR)
- Power supply: 2 x 1.5 V LR03
- Battery charge life: 100 h
- Auto cut-off: 30 min., deactivatable
- Dimensions: 193 x 50 x 28 mm/ Weight: 230 g
TECHNICAL SPECIFICATIONS
- AC current
+ Measuring range: 0.05 to 400.0 A (in 2 calibres)
+ Basic accuracy: 2%L + 10D
+ Bandwidth: 50 to 500 Hz
+ Protection: 600 A RMS
- DC current
+ Measuring range 0.1 to 400.0 A (in 2 calibres)
+ Basic accuracy: 2.5%L + 10D
+ Protection: 600 A RMS
- AC voltage
+ Measuring range: 0.5 V to 600 V (in 2 calibres)
+ Basic accuracy: 1.5%L + 5D
+ Bandwidth: 50 Hz to 500 kHz
+ Input impedance: 10 MΩ
+ Protection: 660 VRMS
- DC voltage
+ Measuring range: 0.2 to 600 V (in 2 calibres)
+ Basic accuracy: 1%L + 2D
+ Protection: 660 VRMS
- Resistance
+ Measuring range: 0.2 to 399.9 Ω
+ Basic accuracy: 1%L + 2D
+ Max. open circuit voltage: 1.5 VDC
- Continuity with buzzer
+ Detection threshold: ≤40 Ω



Delivered with carrying bag containing:
a set of measuring leads, a carrying bag, a user's manual and two 1,5 V alkaline batteries

Datasheet

Manual
