Manuafacturer: Metrix
Model : MX 2B
Item: MX0002B
Warranty : 12 month
Technical specifications
- DC Voltage
+ Calibres: 0.5 V - 1.5 V - 5 V - 15 V - 50 V - 150 V - 500 V - 1.5 kV
+ Protection: 320 Veff (cal. ≤ 5 V) - 500 Veff (15 V); 1,000 Veff (50 V) - 1,500 Veff (150 V to 1.5 kV)
+ Accuracy class: 2
+ Input impedance: 20 kΩ /V
- AC Voltage
+ Calibres: 5 V - 15 V - 50 V - 150 V - 500 V - 1.5 kV
+ Protection: 320 Veff (cal. ≤ 15 V) - 500 Veff (50 V); 1,000 Veff (150 V) - 1,500 Veff (5,000 V and 1.5 kV)
+ Bandwidth: 16 Hz to 1 kHz (500 Hz / 1,500 V)
+ Accuracy class: 2.5
+ Input impedance: 2 kΩ /V
- DC Current
+ Calibres: 50 μA - 10 A
+ Accuracy class: 2
+ Voltage drop: < 0.5 V
+ Protection: 1.6 A and 10 A fuses - 10 kA / 600 Veff
- AC Current
+ Calibres: with MN 09 clamp 10 A/ 20 A /100 A /200 A
+ Accuracy class: 3 / 3/ 3/ 3
+ Protection: 1.6 A - 10 A fuses - / 600 Veff
- Resistance
+ Calibres: x 1 x 10 x 100
+ Middle point: 200 Ω 2 Ω 20 Ω
+ Accuracy class: 2.5
+ Protection: Electronic 400 Veff (5 s) + audible alarm
- Continuity
+ Detection threshold: R < 150 Ω
- OTHER MEASUREMENTS
+ Diode test : yes
+ dB: yes
- General specifications
+ Sealing: IP 65
+ Scale length: 80 mm
+ Safety: IEC EN 61010-1 Edition 2, Cat. III 600 V - Pollution level 2
+ Power supply: 1.5 V battery (AA, R6)
+ Dimensions / weight: 40 x 98 x 150 mm / 420 g
State of delivery: their leads, battery and operating manual.

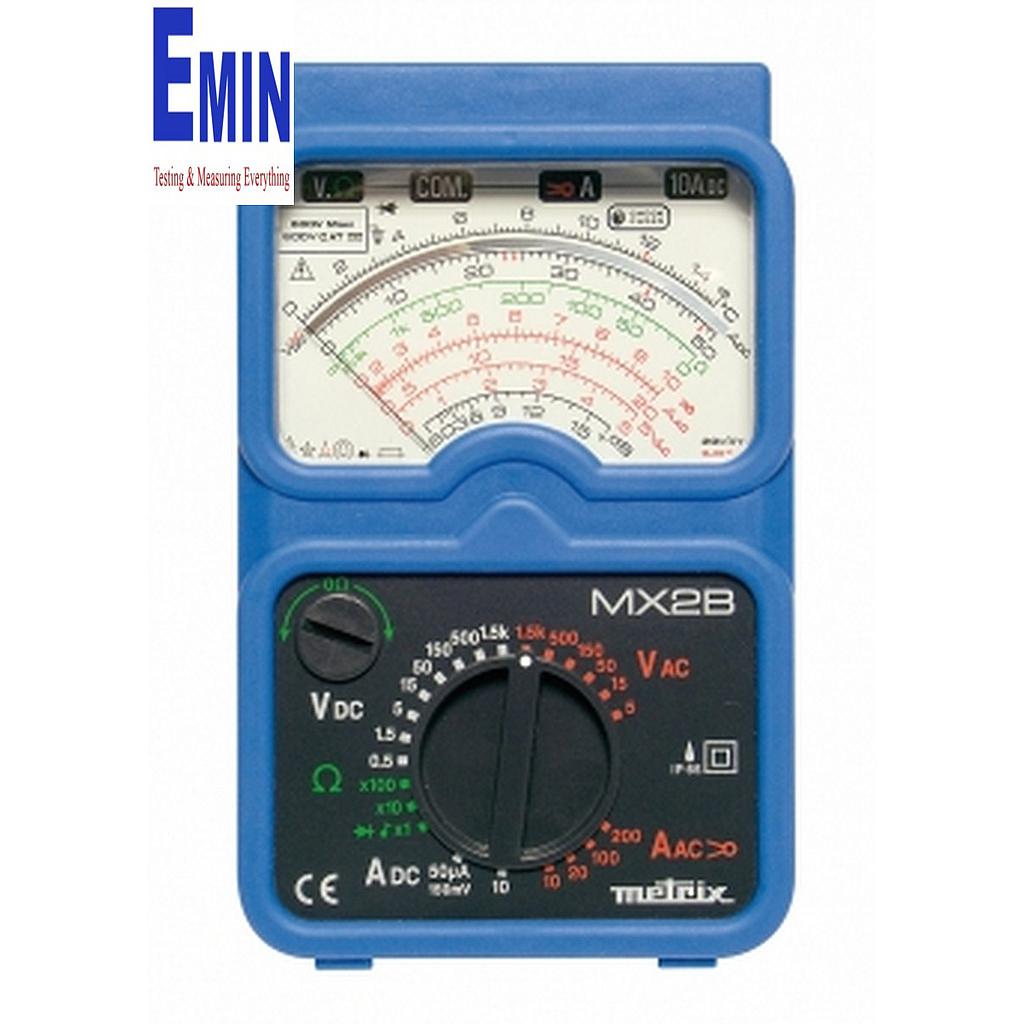

The MX 2B stands up to use on any site thanks, in particular, to its rugged moulded casing which is also water-resistant. It benefits from protection on all its ranges and there is a safety alarm when it is used as an ohmmeter.
The current clamp delivered as standard with the multimeter can be used to measure AC currents up to 200A in total safety by avoiding having to open the main circuit.
