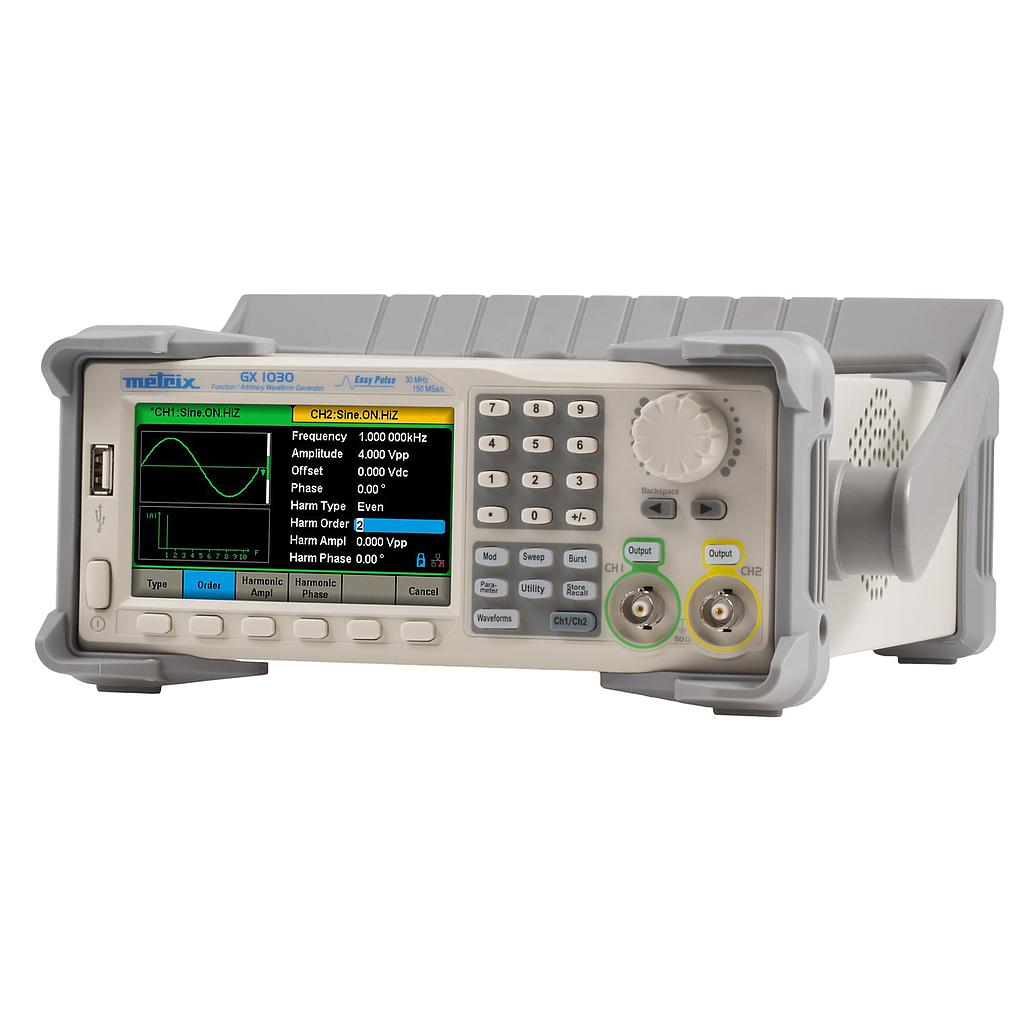

METRIX GX1030 Function Generator (2 Chanels, 30 MHz)

Display: 4.3-inch colour TFT screen with high contrast – dimensions 960x 540 mm -24 bits

Controls on front panel: 23 direct-access buttons, 1 rotary knob

Adjustment of signal parameters: Continuous via the encoder and/digital keypad

BNC output terminals on front panel: Generator outputs 1 & 2 – Independent settings (waveform, f, phase, amplitude, etc.), coupled, duplicated or combined channels

BNC I/O terminals on rear panel:3 inputs/outputs for Ext. trigger, frequency meter and 10 MHz clock - synchronization

Signal generation

Signal types: Sine, Square, Triangle, Ramp, Pulse, White Noise, Arbitrary Signal (196 pre-installed waveforms)

Generation of arbitrary signals

Resolution / Sampling: 14 bits / 150 MS/s

Data storage: Memory depth 16 kpts - Storage of predefined or specific signals on USB drive

Signal frequencies

Frequency range: Sine from 0.001 mHz to 30.000 MHz, Triangle 500 kHz, Noise and Square 30 MHz, Pulse 12.5 MHz, Arbitrary Signal 6 MHz

Resolution / Accuracy: 7-digit display - 1 mHz resolution - vertical accuracy <=(1%+1mVpp) at 10 kHz

Long-term drift: ± 100 ppm / an

Temperature coefficient: <5 ppm /°C

Amplitude

Voltage levels: 50 Ω output = 2 mVss ~ 10 Vss < 10 MHz / 2 mVss ~ 5 Vss ≥10 MHz | HiZ output = 4 mVss ~ 20 Vss < 10 MHz / 4 mVss ~ 10 Vss ≥ 10 MHz

Flatness: 7-digit display - 1 mHz resolution - vertical accuracy <=(1%+1mVpp) at 10 kHz

VDC offset: ± 100 ppm / year

Impedance / Protection: < 5 ppm /°C

Signal characteristics

Sine: Typical distortion < 0.075 % for f < 20 kHz, and harmonics < -50 dBc

Triangle (max. frequency 2 MHz): Linearity error < 1% max

Square & pulse: Rise time < 16.8 ns (typ.) – Duty cycle 10-90% (DC < f < 20MHz) –Min. pulsed 32.6 ns with 1 ns resolution
