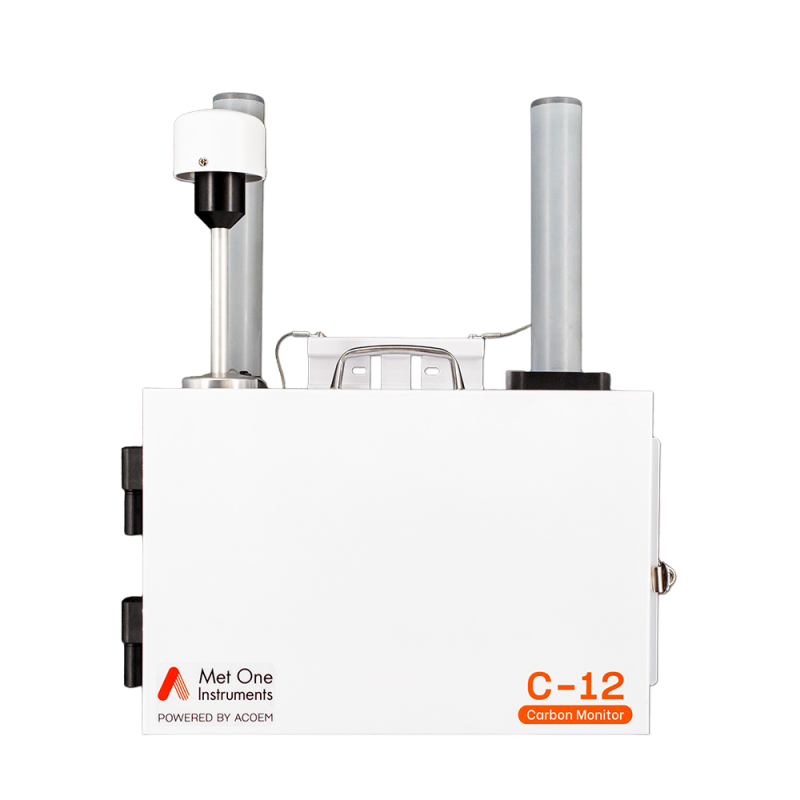

METONE C-12 Portable Carbon Monitor (< 70 ng/m³)

Principle of Operation: Optical attenuation across filter media

Illumination Wavelength: 880 nm (standard); 880 nm / 370 nm (optional)

Output: BC standard (880 nm); BC/BrC, Source-Apportionment (880 nm, 370 nm) optional

Particle Measurement: TSP

Sampling Rate: 1 LPM

Lower Detection Limit (2σ): < 70 ng/m³ (1-minute time scale, 880 nm illumination)

Communications: USB; built-in CCS + COMET Cloud Modem (Verizon™ 4G LTE for U.S. Domestic; GSM internationally with over 550 networks)

Power:

Input Power: 100 – 240 VAC, 50/60 Hz; optional solar panel

Power Consumption: 6 W

Environmental:

Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)

Ambient Humidity Range: 0 – 90% RH, non-condensing

Physical:

Weight: 16 lbs 11 oz (7.57 kg)

Size: 15 in (38.1 cm) width × 12 in (30.48 cm) height (to top of sun shield) × 12 in (30.48 cm) depth
