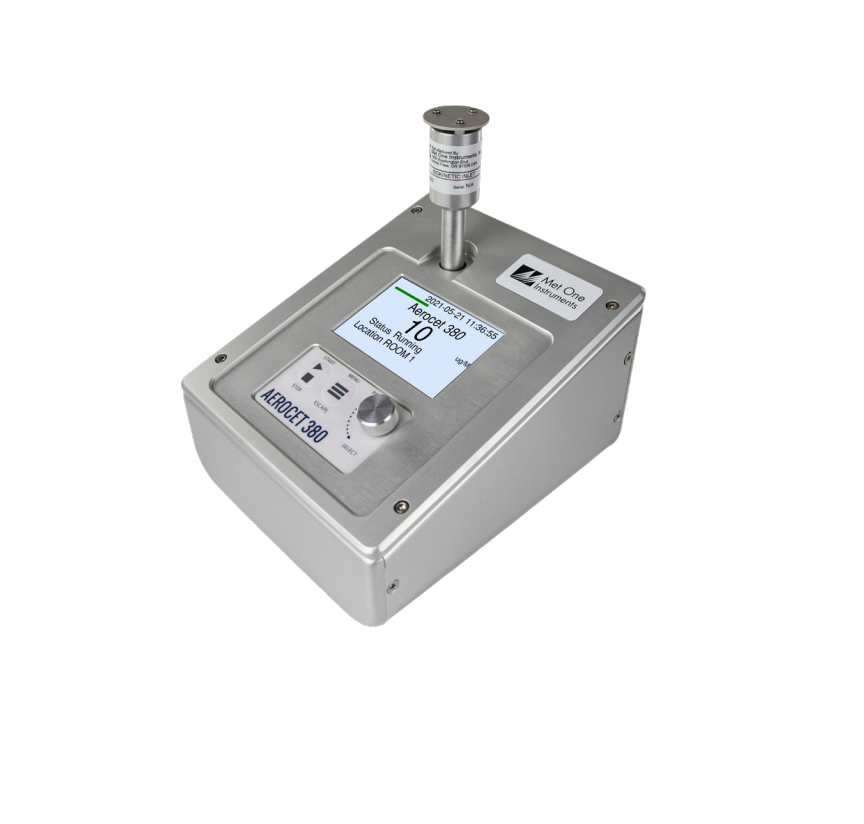

METONE Aerocet 380 Dust Monitor (0 ~100 mg/m3)

Specifications

Measurement Principles: Particulate concentration by forward light scatter laser Nephelometer.

Measurement Range: 0 to 100 mg/m3 (0 to 100,000 µg/m3 )

Measurement Sensitivity: 0.001 mg/m3

Nephelometer Accuracy: ± 5% traceable standard with 0.6 µm PSL

Particle Size Sensitivity: 0.1 to 100 µm. Optimal sensitivity 0.5 to 10 µm particles

Long-term Stability: 5% with clean optics

Laser Type: Diode Laser, 5 mW, 670 nm; Visible red

Display: 3.5” color LCD

Flow Rate: 2.0 liters/ minute ± 0.1 LPM. Actual volumetric flow

Pump Type: Brushless Diaphragm (20,000 hour)

Power: Input: 14.8 V Li Battery, Output: 16.8 VDC @ 1.8 A

Power Consumption: 5.25 W

Digital I/O: RS-485, USB-C, WiFi

Purge Filter: 0.01 µm (99.99% in air)

Pump Filter: 5.0 micron

Serial Communication: ASCII, MODBUS

Internal Data Storage: >15,000 records

Operating Temperature: 0° C to +40° C

Ambient Humidity Range: 0 to 90% RH, non-condensing

Unit Weight: 2.3 kg (5.1 lbs)

Unit Dimensions: 21.6 cm height, 15.2 cm width, 21.0 cm depth (8.5” x 6.0” x 8.25”)

Available Cut Points: PM1 , PM2.5, or PM10 separators optional

Supplied Accessories

- Li-Ion Smart Charge w/ Power Cord

- TSP Sampling Cap

- Sample Tube

- USB-C Comm Cable

- RS-485 Comm Cable

- Operation Manual

- NIST Certificate of Calibration

Optional Accessories

- PM1 Sharp Cut Cyclone (SCC 111)

- PM2.5 Sharp Cut Cyclone (SCC 112)

- PM10 Sharp Cut Cyclone (SCC 110)

Datasheet
