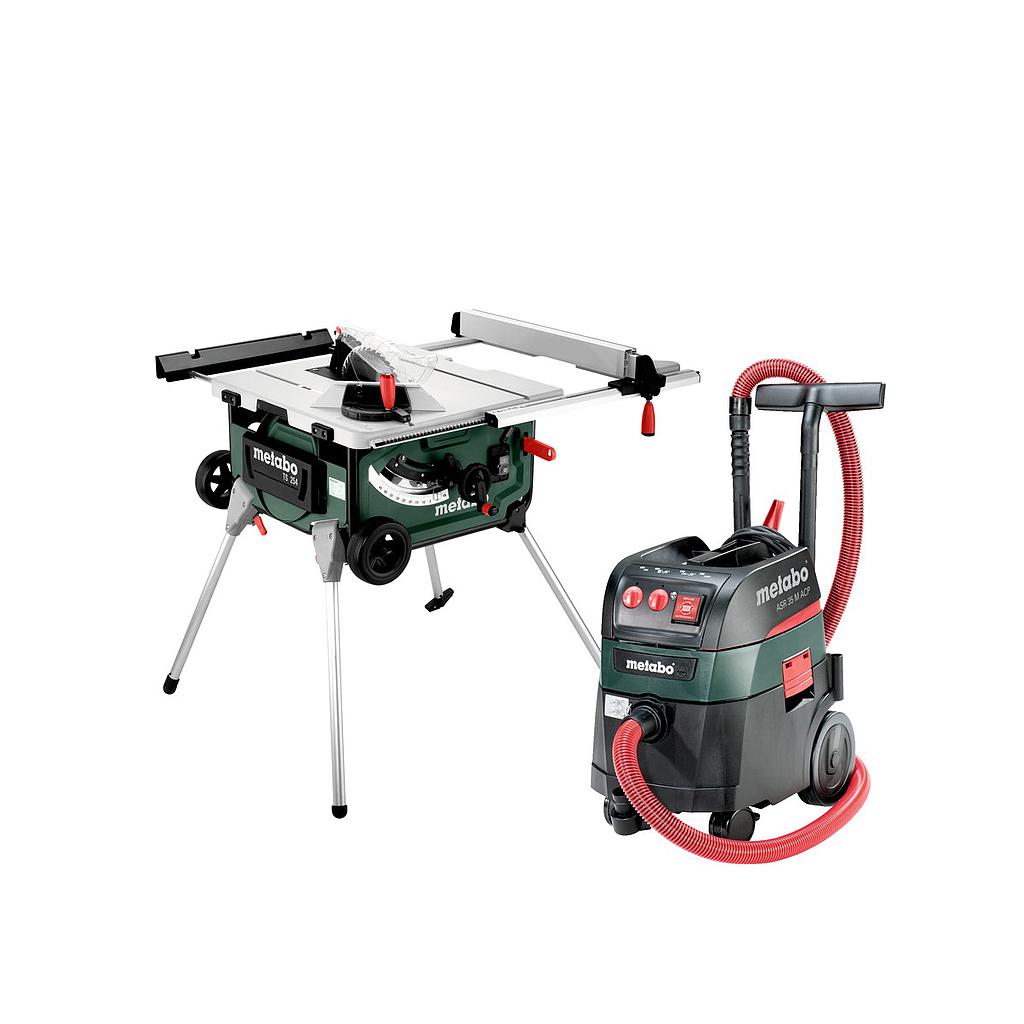

METABO TS 254 + ASR 35 M ACP SET Mains-powered machines in a set (TS 254 + ASR 35 M ACP)

TS 254 (600668000) Table Saw

Dimensions: 740 x 750 x 355 mm / 2.5 x 2.5 x 1.2 ft

Max. support surface: 970 x 995 mm / 38 3/16 x 39 3/16 "

Working height: 850 / 355 mm // 33 1/2 / 14 "

Cutting height: 0 - 87 mm // 0 - 3 3/8 "

Maximum cutting height 90/45°: 87 / 54 mm // 3 7/16 / 2 "

Maximum cutting width at parallel guide/rip fence: 630 mm / 24 3/4 "

Maximum material width at mitre fence: 200 mm / 7 7/8 "

No-load speed: 4200 rpm

Cutting speed: 56 m/s / 184 ft/s

Saw blade: 254 x 30 mm / 10 x 1.181 "

Saw blade swivel range: -1.5 - 46.5 °

Mains voltage: 220 - 240 V

Rated input power S1 100%: 1700 W

Rated input power S6 20%: 2000 W

Weight: 33.4 kg / 73.6 lbs kg

Cable length: 3.1 m / 10 ft

Noise emission

Sound pressure level: 99 dB(A)

Sound power level (LwA): 112 dB(A)

Uncertainty of measurement K: 3 dB(A)

ASR 35 M ACP (602058000) All-purpose Vacuum Cleaner

Air output max.: 4380 l/min / 157 cfm

Vacuum: 248 hPa (mbar) / 3.6 psi

Filter surface: 8600 cm² / 1333 sq.inch

Input power max.: 1400 W

Container volume: 35 l / 9 gal

Suction hose Ø: 35 mm / 1 3/8 "

Hose length: 4 m / 13 ft m

Weight: 16 kg / 35.3 lbs kg

Cable length: 8 m / 26 ft m

Delivery

Table saw TS 254 with stand, Carbide saw blade with alternately bevel-ground tips (40 teeth), hard rubber tyres, parallel guide, mitre fence, table length extension, table width extension (right), saw blade storage, chip and dust extraction unit, rubber cable (3 m), push stick.

All-purpose vacuum cleaner with antistatic suction hose (Ø 35 mm, 4 m long), handle adapter, connecting sleeve Ø 41/48 mm, 2 plastic suction tubes, 2 polyester filter cassettes (class M), PE filter bag, crevice nozzle, floor nozzle (300 mm breit)

Datasheet

TS 254 (600668000)

ASR 35 M ACP (602058000)

Features

System solution for clean mobile sawing

Table Saw TS 254: lightest mobile table saw with stand and trolley function. Setup in only 15 seconds

All-purpose Vacuum Cleaner ASR 35 M ACP for extraction from power tools in continuous operation on construction sites and in the workshop. AutoCleanPlus: saves both costs and time thanks to automatic MPulse filter cleaning during continuous use. If the optimum suction performance falls below a certain level, the filters are shaken immediately. Especially suited for extracting concrete and rock dust. High user safety: certified in accordance with EU standard for dust class M
