SB 18 LT BL (602316890) Cordless hammer drill
Battery voltage: 18 V
Maximum torque, soft: 34 Nm / 301 in-lbs
Maximum torque, hard: 60 Nm / 531 in-lbs
Adjustable torque: 0.7 - 8 Nm // 6 - 71 in-lbs
Drill-Ø masonry: 13 mm / 1/2 "
Drill-Ø steel: 13 mm / 1/2 "
Drill-Ø soft wood: 38 mm / 1 1/2 "
No-load speed: 0 - 600 / 0 - 2100 rpm
Maximum impact rate: 31950 bpm
Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
Weight (including battery pack): 1.5 kg / 3.3 g
Vibration
Drilling in metal: 3.4 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 17 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
SSD 18 LTX 200 BL (602396890) Cordless Impact Driver
Battery voltage: 18 V
Max. screw size: M16
Max. no-load speed: 2900 rpm
Maximum impact rate: 4000 bpm
Maximum torque: 200 Nm / 150 ft. lbs
Speed/torque levels: 12
Bit retainer: Hexagon recess 1/4" (6.35 mm)
Weight (including battery pack): 1.3 kg / 2.9 lbs
Vibration
Impact screwdriving: 9 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 94 dB(A)
Sound power level (LwA): 105 dB(A)
Uncertainty of measurement K: 3 dB(A)

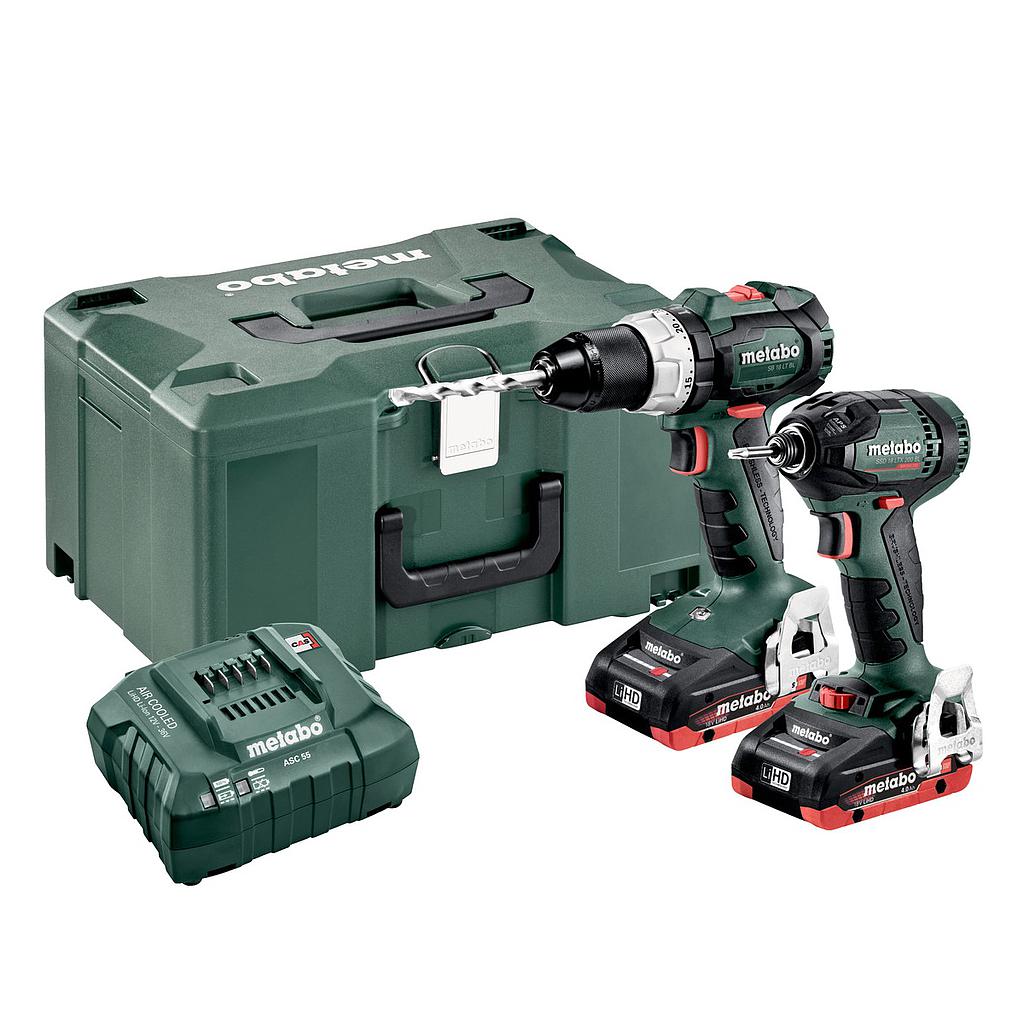

Delivery
Cordless hammer drill SB 18 LT BL,
Cordless impact driver SSD 18 LTX 200 BL, 2 x LiHD battery packs (18 V/4.0 Ah), charger ASC 55 V, MetaLoc III carry case
Datasheet
SB 18 LT BL (602316890)
Features
Cordless hammer drill SB 18 LT BL: brushless cordless hammer drill with compact design for universal and demanding applications
Cordless Impact Driver SSD 18 LTX 200 BL: Unique Metabo brushless motor for quick work progress and the highest efficiency for any application
High torque machine with low kick-back
LiHD battery pack for ultimate performance and extremely long runtime with minimal temperature generation
LiHD battery pack for ultimate performance and extremely long runtime with minimal temperature generation
Patented AIR COOLED technology for speedy charging and long service life
Metabo Ultra-M technology: intelligent battery management for long-lasting battery packs with a 3-year guarantee
