Dimensions: 658 x 600 x 460 mm
Table size: 462 x 261 mm
Cutting height – table mode: 0 - 50 mm
Cutting width - cross cutting mode 90/45°: 150 / 100 mm
Cutting depth - cross cutting mode 90/45°: 102 / 70 mm
Cutting capacity 90°/90°: 150 x 102 mm
Cutting capacity 45°/45°: 115 x 45 mm
Turntable setting left/right: 52 / 52 °
Saw blade tilt left/right: 47 / 2 °
Rated input power: 1600 W
No-load speed: 3700 rpm
Revolutions at rated load: 2750 rpm
Max. cutting speed: 60 m/s / 197 ft/s
Saw blade: 305 x 30 mm
Weight: 22 kg
Cable length: 2.8 m
Noise emission
Sound pressure level: 95 dB(A)
Sound power level (LwA): 98 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Carbide saw blade (56 teeth)
Length Guide
Material clamp
Chip Collection Bag
Tool for saw blade change
Push stick
2 x Table length extensions
Parallel Guide / Rip Fence
Accessories
SAWING
Circular saw blades, Further accessories for crosscut and mitre saws, Other accessories for semi-stationary/stationary saws
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

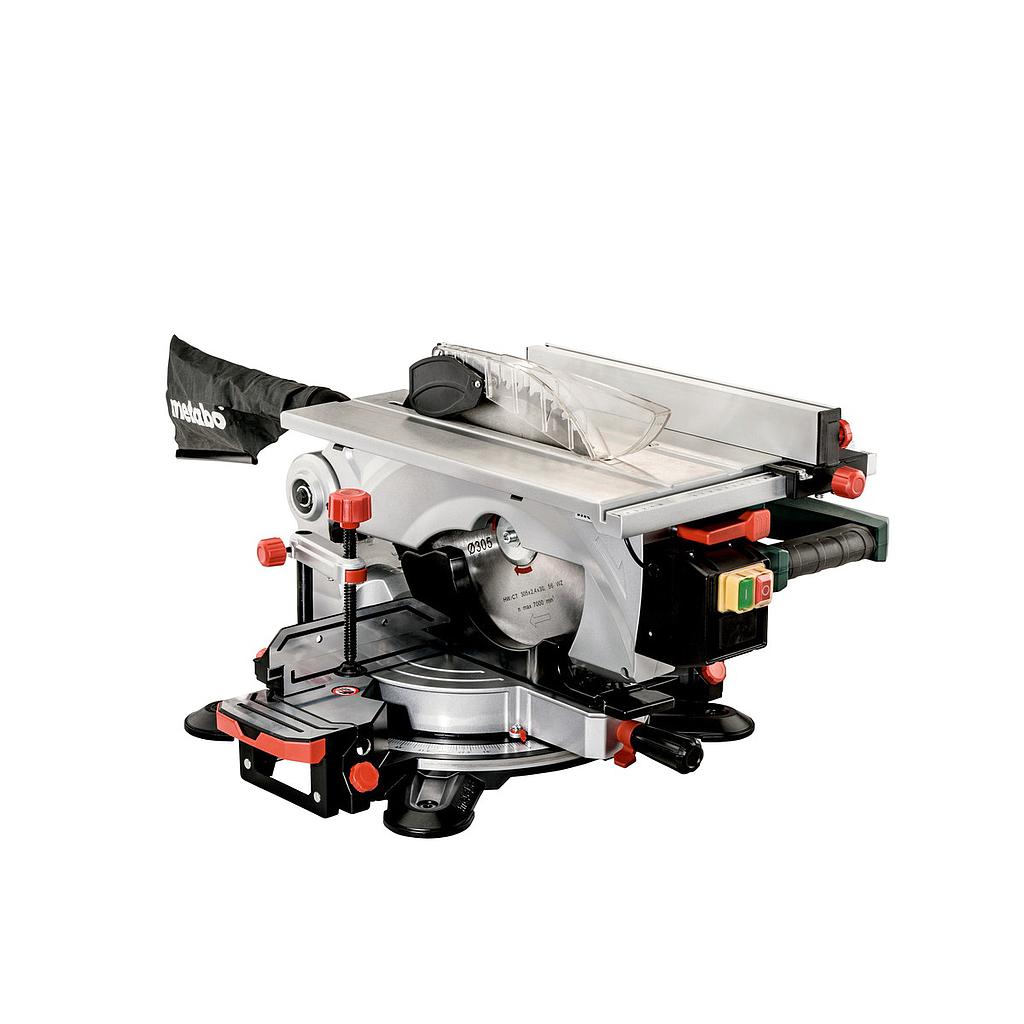

Cross-cut and mitre saw with additional table circular saw function for straight cuts
Quick changeover from crosscut to table operation
Compact light-weight saw, ideal for mobile use
Easy transport by means of saw head lock
Robust die-cast aluminium design for the highest demands
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)
Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
Sliding high rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Restart protection: prevents unintentional start-up after power supply interruption
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
