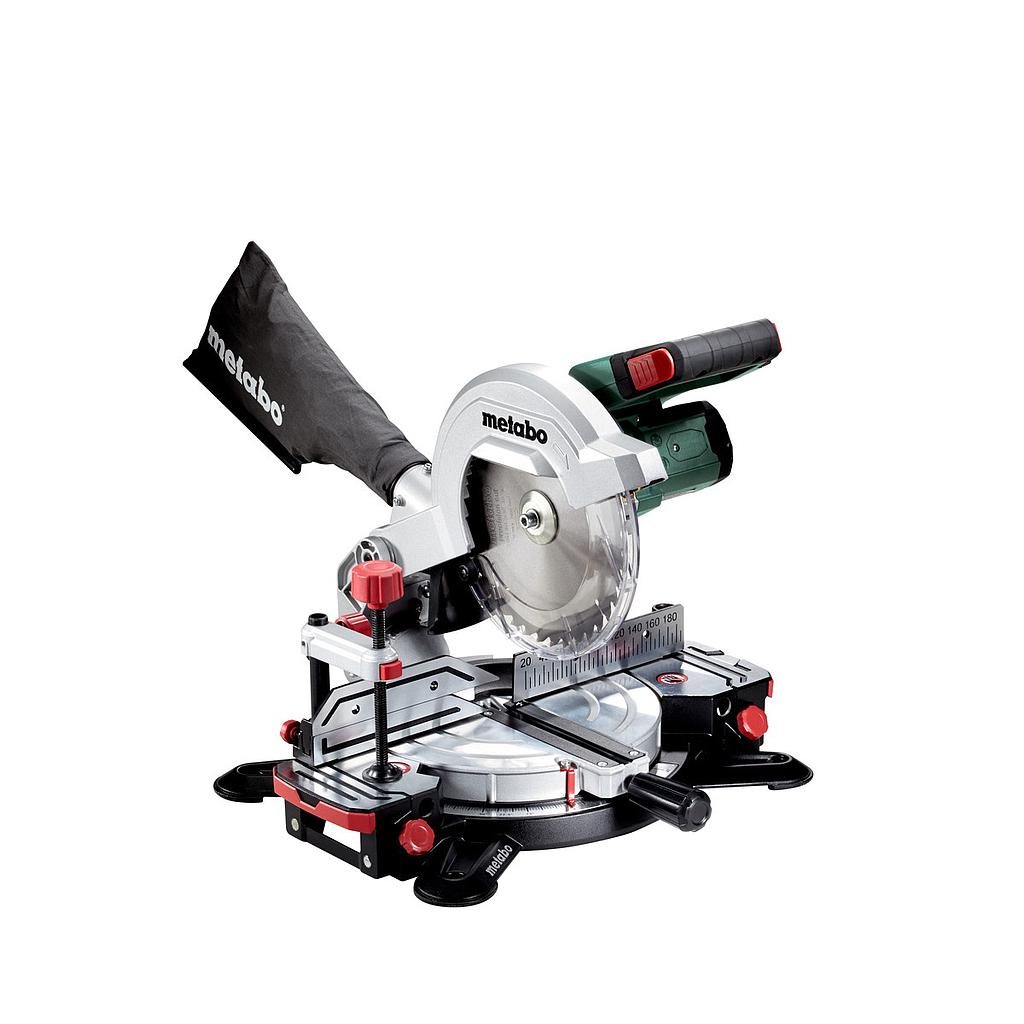

METABO KS 18 LTX 216 Cordless metre saw (18V)

Battery voltage: 18 V

Battery pack capacity: 0

Support surface: 155 x 725 mm

Maximum cutting width 90°/45°: 120 / 80 mm // 4 11/16 / 3 1/8 "

Maximum cutting depth at 90°/45°: 60 / 45 mm // 2 3/8 / 1 3/4 "

Cutting capacity 90°/90°: 120 x 60 mm / 4 11/16 x 2 3/8 "

Cutting capacity 45°/45°: 80 x 45 mm / 3 5/32 x 1 3/4 "

Turntable setting left/right: 47 / 47 °

Saw blade tilt left/right: 47 / 2 °

Saw blade: 216 x 30 mm / 8 1/2 x 1.181 "

No-load speed: 4200 rpm

Max. cutting speed: 48 m/s / 157 ft/s

Weight (including battery pack): 9.6 kg / 21.2 lbs

Delivery

Carbide saw blade (40 teeth)

2 x Table length extensions

Length Guide

Material clamp

Tool for saw blade change

Chip Collection Bag

Without battery pack, without charger

Accessories

SAWING

Other accessories for semi-stationary/stationary circular saws, Further accessories for band saws, Other accessories for semi-stationary/stationary saws

ACCESSORIES FOR CORDLESS MACHINES

Charger

OTHER ACCESSORIES

COccupational safety

Datasheet

Features

Powerful cordless mitre saw perfect for assembly jobs with high volume of cuts

Up to 200 cuts per battery pack charge (5.2 Ah) in 60 x 60 mm soft wood

Compact light weight, suitable also for one-handed transport

Easy transport thanks to ergonomically-designed handles and saw head lock

Motor brake for quick stop of the saw blade in 3 seconds

Robust die-cast aluminium design for the highest demands

Effective internal chip and dust extraction via dust scoop and chip collection bag

Fast and precise setting of common angles using stop points

Cutting line laser and LED work light with energy-saving automatic shutoff

Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath

Sliding high rear fence profiles for safe sawing

Material clamp for secure fixing of the work piece from the top or front

Saw head can be inclined to the left, with additional angle range for undercuts

All scales and operating elements are visible from the working position and can be operated intuitively

Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Battery packs with capacity display for checking the charge status

Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
