Type of battery pack: LiHD
Battery voltage: 18 V
Battery pack capacity: 2 x 5.5 Ah
Maximum torque, soft: 60 Nm / 531 in-lbs
Pulse torque: 65 Nm / 48 ft. lbs
Maximum torque, hard: 120 Nm / 1062 in-lbs
Adjustable torque: 1 - 20 Nm // 9 - 177 in-lbs
Ø Drill masonry: 16 mm / 5/8 "
Ø Drill steel: 13 mm / 1/2 "
Ø Drill soft wood: 65 mm / 2 1/2 "
No-load speed: 0 - 500 / 0 - 2050 / 0 - 3800 rpm
Maximum impact rate: 32300 bpm
Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
Weight (including battery pack): 2.8 kg / 6.2 lbs
Vibration
Drilling in metal: 3.8 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 17.7 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 71 dB(A)
Sound power level (LwA): 82 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Futuro Plus keyless chuck with metal sleeve
2 x LiHD battery packs (18 V/5.5 Ah)
Quick charger ASC 145 "AIR COOLED"
Charger ASC 145 "AIR COOLED"
Plastic carry case
Side handle
Belt hook and bit case
Accessories
DRILLING/CHISELLING
Concrete/stone drill bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Glass drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets
CHUCKS
Chuck keys
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments, Other accesssories screwdriving/fixing
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
Case systems, Occupational safety
Datasheet
Features

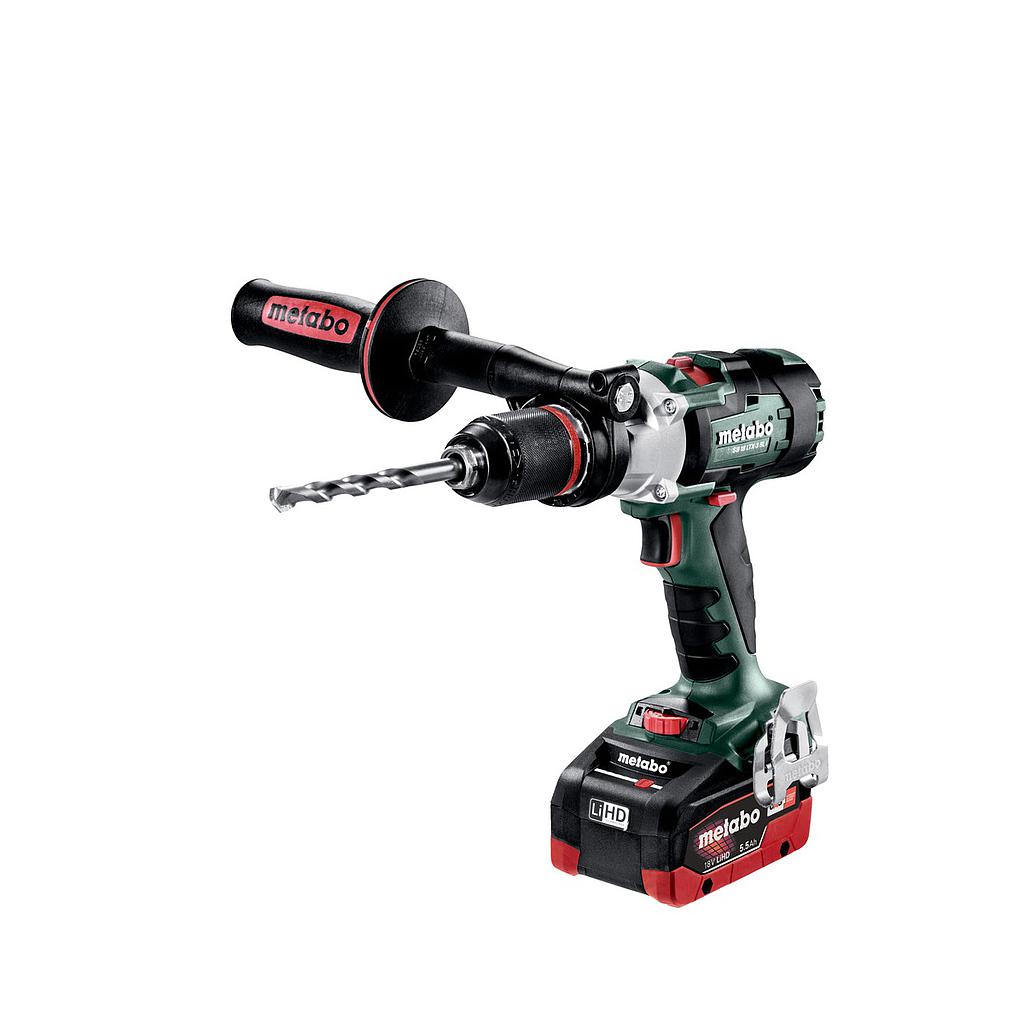

Brushless 3-speed hammer drill with maximum power for demanding applications
Third speed setting with high torque (max. 3,800/min) for extended range of application and even faster drilling progress
Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
Precision Stop: electronic torque control with increased precision for precise, delicate working
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
With handy belt hook and bit case which can be fixed either on the right or left side
LiHD battery pack for ultimate performance, extremely long runtime and service life
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
