Type of battery pack: Li-on
Battery voltage: 18 V
Battery pack capacity: 3 x 4.0 Ah
Max. single blow energy (EPTA): 2.2 J
Maximum impact rate: 4000 bpm
Drill-Ø concrete with hammer drills: 24 mm / 1 "
Drill-Ø masonry with core bits: 68 mm / 2 5/8 "
Drill Ø steel: 13 mm / 1/2 "
Drill-Ø soft wood: 25 mm / 1 "
No-load speed: 0 - 1100 rpm
Bit retainer: SDS-plus
Weight (including battery pack): 2.9 kg / 6.4 lbs
Vibration
Hammer drilling concrete: 15 m/s²
Uncertainty of measurement K: 1.5 m/s²
Chiseling: 13.7 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 87 dB(A)
Sound power level (LwA): 98 dB(A)
Uncertainty of measurement K: 3 dB(A)

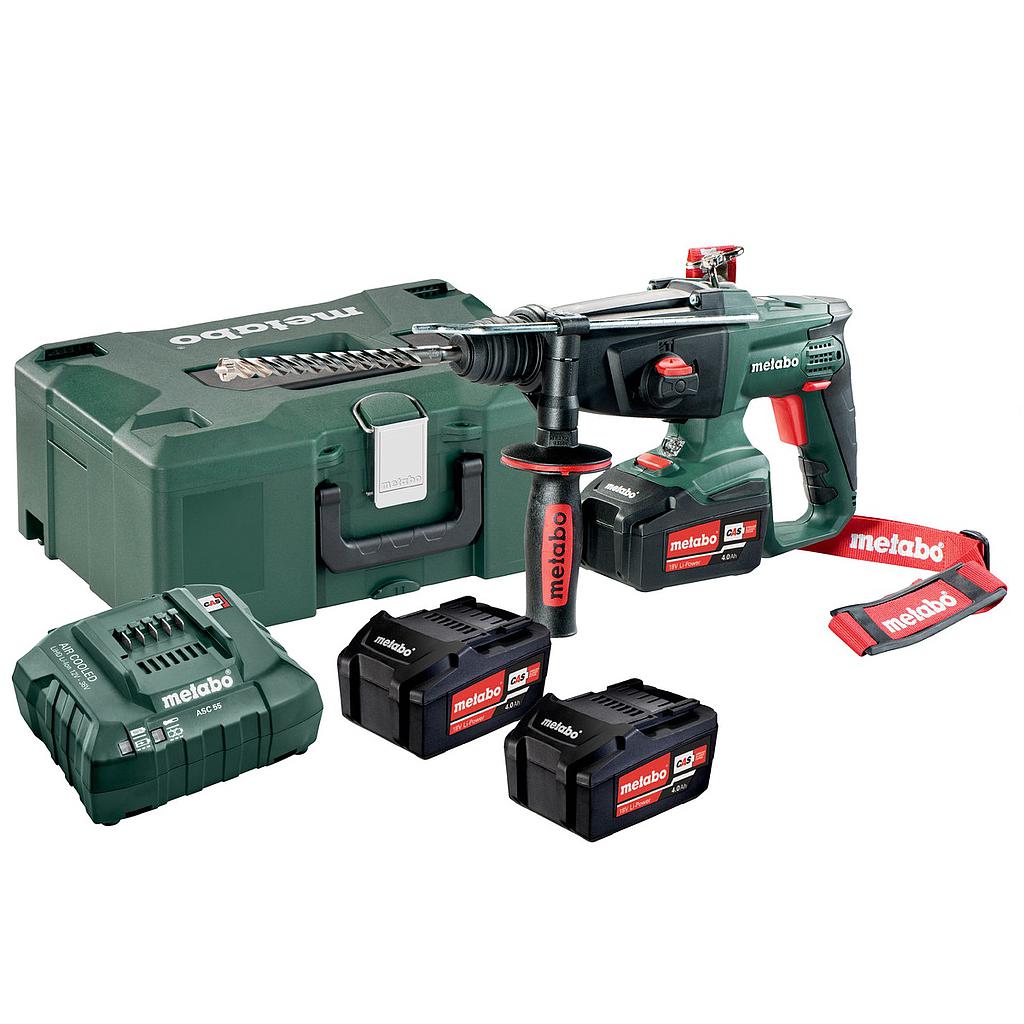

Delivery
Hammer chuck for tools with SDS-plus shank end
Carrying strap
3 Li-Power battery packs (18 V/4.0 Ah)
Charger ASC 55 "AIR COOLED"
MetaLoc case
Rubber-coated side handle
Drilling depth guide
Accessories
DRILLING/CHISELLING
SDS-plus drill/chisel bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills, Further accessories for rotary and chipping hammers
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets, Chisel bit sets
CHUCKS
Keyless chucks, Geared chucks, Chuck keys
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Screw-type angle attachments
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
Occupational safety
Features
Combination hammer with 3 functions: hammer drilling, drilling and chiselling
Variospeed (V) Electronics for working at customised speeds to suit various application materials
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
LED work light for optimum view of the drilling site
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
