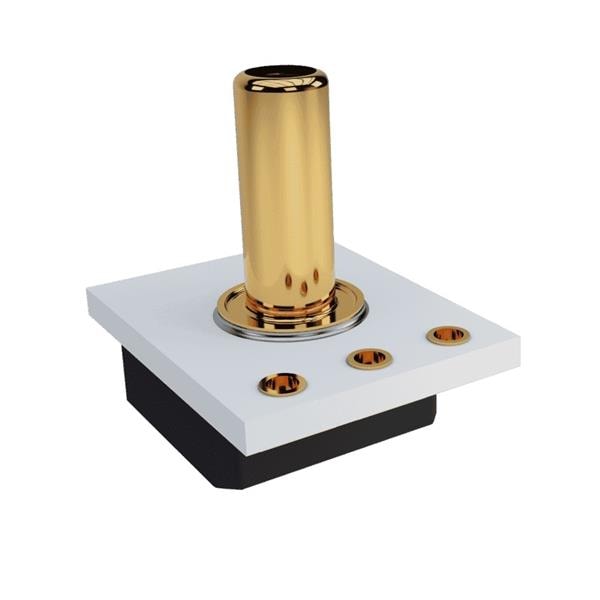

Merit Sensor TR1-0500A-101 Transducers Designed for harsh media and high temperature, 500 psia, radial seal, analog out 0.5-4.5 V, +/-2.5% accuracy

Width: 10.3 mm

Length: 12.8 mm

Accuracy: 2.5 %

Port Size: 8.6 mm x 3.1 mm

Output Type: Analog

Unit Weight: 2.861 g

Pressure Port: Port

Pressure Type: Absolute

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Operating Pressure: 500 psi

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Operating Supply Current: 10 mA

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
