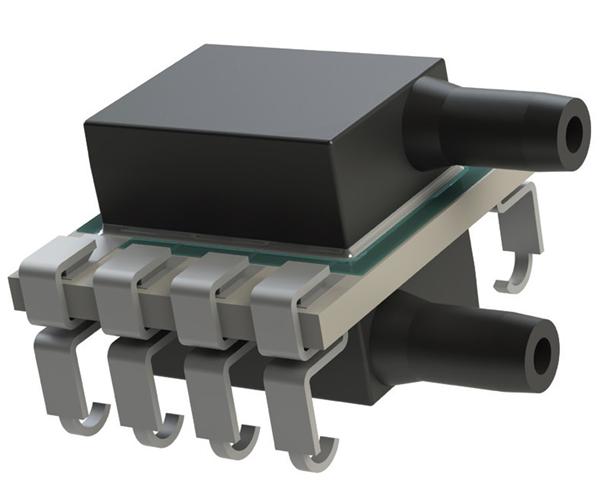

Merit Sensor 1402-P30G-11 Board Mount Pressure Sensors Surface Mount Pressure Sensor, 0.30 psig, uncompensated, closed bridge, -40-85C
Manufacturer: Merit Sensor Model: 1402-P30G-11 - Contact
Accuracy: 2.5 %
Port Type: Dual Radial Barbless
Output Type: Analog
Pressure Type: Gauge
Output Voltage: 45 mV
Operating Pressure: 0.3 psi
Supply Voltage - Max: 15 V
Supply Voltage - Min: 5 V
Operating Supply Current: 3 mA
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
