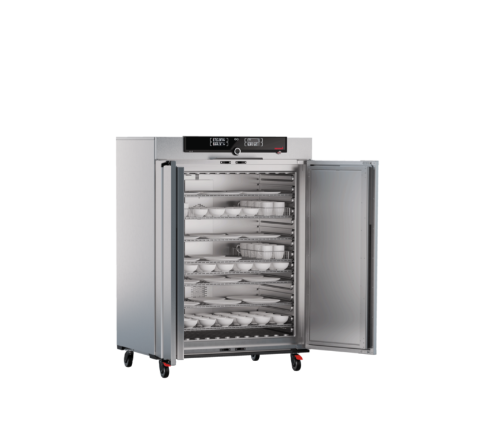

MEMMERT UF750DW Universal oven dishwasher (749L)

Set temperature range in °C:  min.10 above ambient up to +100°C

resolution of display for actual values 0.1°C

resolution of display for setpoint values 0.1°C

resolution of display/setting accuracy 0.5°C

Temperature: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control COCKPIT: Twin DISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function Setpoint WAIT: the process time does not start until the set temperature is reached

Adjustable parameters: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

Documentation: programme stored in case of power failure

Auto diagnostic system: for fault analysis

Door: fully insulated stainless steel doors on two sides

Alarm: visual and acoustic

Internals Dimensions: w(A) x h(B) x d(C): 1040 x 1200 x 600 mm

Volume: 749L

Max. loading of chamber: 300 kg

Max. loading per internal: 60 kg

Voltage Electrical load 400 V and 3x 230 V w/o neutral, 50/60 Hz approx. 7000 W

Ambient temperature: +5 °C to +40 °C

Humidity rh: max. 80 %, non-condensing

Dimensions approx incl. carton w x h x d:  1330 x 1910 x 1050 mm

Net weight: 255 kg

Gross weight carton: 295 kg
