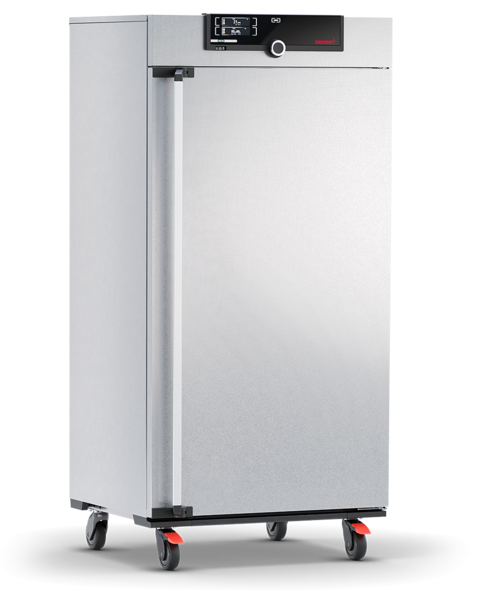

MEMMERT IPP410eco Peltier-cooled incubator (384L, 0~+70 °C)

Temperature

- Setting temperature range: 0 to +70°C

- Working temperature range with light: +10 to +40°C

- Working temperature range without light: from 0 (at least 20 below ambient temperature) to +70°C

- Setting accuracy temperature: 0.1°C

- Temperature sensor: 1 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

- ControlCOCKPIT SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

- Language setting: German, English, Spanish, French, Polish, Czech, Hungarian, Chinese

- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

- Function SetpointWAIT: the process time does not start until the set temperature is reached

- Calibration: three freely selectable temperature values

- Adjustable parameters: temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

Communication

- Documentation: programme stored in case of power failure

- Programming: AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Standard equipment

- Works calibration certificate: for +10°C, +25°C and +40°C

- Door: fully insulated stainless steel door with 2-point locking (compression door lock)

- Internals: 2 stainless steel grid(s), electropolished

- Door: inner glass door

Stainless steel interior

- Dimensions: w(A) x h(B) x d(C): 640 x 1200 x 500 mm (d less 32 mm for fan - Peltier)

- Volume: 384L

- Max. number of internals: 14

- Max. loading of chamber: 200 kg

- Max. loading per internal: 20 kg

Textured stainless steel casing

- Dimensions: w(D) x h(E) x d(F): 824 x 1720 x 655 mm (d +56mm door handle & +111mm Peltier element)

- Housing: rear zinc-plated steel

Electric data

- Voltage: 230 V, 50/60 Hz

- Electric load: approx. 600W

Ambient conditions

Ambient temperature: 16 °C to 40 °C

Humidity rh: max. 70 %, non-condensing

Datasheet
