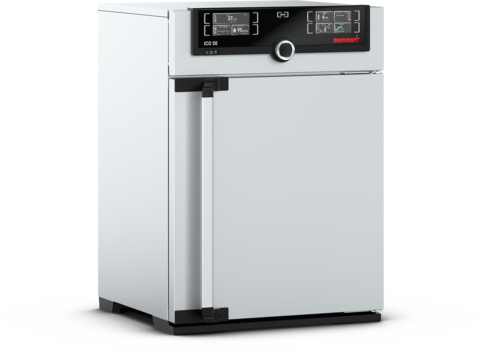

MEMMERT ICO50 CO2 Incubator (56L)

Interior dimension: width 400 x height 425 x depth 330 mm

Exterior dimension: width 559 x height 795 x depth 521 mm

Stainless steel shelves (standard): 1

Max. number of perforated shelves: 5

Working-temperature range: 5 °C above ambient temperature up to +50 °C

Standard sterilisation programme: 60 minutes at 180°C (without removing the sensors)

Setting temperature range: +18 to +50 °C

Setting accuracy temperature: 0.1 °C

Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Temperature variation in chamber at +37 °C +/- 0.3 K

Temperature fluctuations with time at 37 °C +/- 0.1 K

Humidity control (standard): Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93 % rh +/- 2.5 %

Setting accuracy humidity 0.5 % rh

Setting range active humidity control (with option K7): 40 to 97 % rh and rh-Off

Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation

Adjustment range: 0 to 20 % CO2

Setting accuracy: 0.1%

Variation in time: +/- 0.2 % CO2

Adjustment range: 1 to 20 % O2

Setting accuracy : 0.1 % O2

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Function SetpointWAIT the process time does not start until the set temperature is reached

Adjustable parameters: temperature (Celsius or Fahrenheit), CO2, programme time, time zones, summertime/wintertime

Interface: Ethernet LAN, USB

Documentation programme stored in case of power failure

Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

AutoSAFETY: additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Autodiagnostic system: integral fault diagnostics for temperature and CO2

Alarm: visual and acoustic

Fully insulated stainless steel door with 2-point locking (compression door lock)

Inner glass door with opening (8 mm Ø) to take gas sample

Voltage: 230 V, 50/60 Hz

Electrical load: approx. 1100 W

Ambient temperature: 10 °C to 35 °C

Humidity rh: max. 70 %, non-condensing
