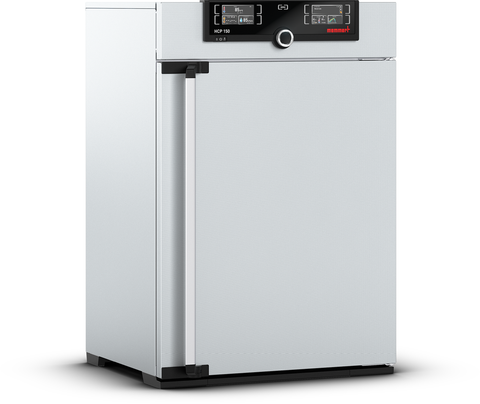

MEMMERT HCP150 Humidity Chamber (156L)

Interior dimension: width 560 x height 700 x depth 400 mm

Exterior dimension: width 719 x height 1070 x depth 591 mm

Stainless steel shelves: 2

Max. number of grids/shelves: 10

Temperature

Working temperature range: +7 above ambient temperature up to +90 °C

Setting temperature range: +18 to +90 °C

Setting accuracy temperature: 0.1 °C

Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Humidity

Setting range active humidity control: 20 to 95% rh and rh-Off

Setting accuracy humidity: 0.5% rh

Control technology

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Adjustable parameters: temperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime

Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT: the process time does not start until the set temperature is reached

Calibration: three freely selectable values each, temperature and humidity

Communication

Interface: Ethernet LAN, USB

Documentation: programme stored in case of power failure

Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

AutoSAFETY: additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Autodiagnostic system: integral fault diagnostics for temperature and humidity control

Alarm: visual and acoustic

Electrical data

Voltage: 230V, 50/60 Hz

Electrical load: approx. 1800 W

Ambient conditions

Ambient temperature: 10 ºC to 30 ºC

Humidity rh: max. 70 %, non-condensing

Datasheet
