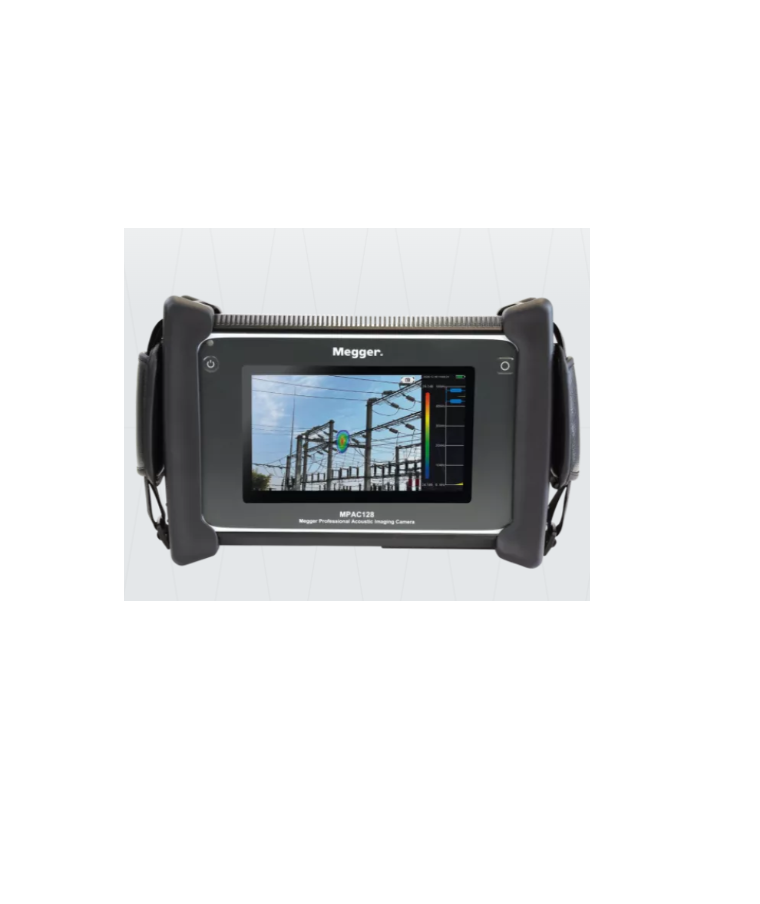

MEGGER MPAC128 Acoustic Imaging Camera

Detection frequency: 2 kHz to 48 kHz

Detection range: 0.3 to 120 m

Optical camera resolution: 8 megapixels

Leak detection rate:

1 m 7 bar 0.37 ml/s

10 m 7 bar 0.7 ml/s

Microphones in array: 128

Sound image field of view

Horizontal: 62°

Vertical: 48°

Meets IP54

Ease Of Use: Intuitive user interface and touch screen

Trend Graphs: Frequency and dB scale

Cursor information: dB level reading at centre point of the image

Supported Languages: English, Dutch, French, Chinese, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish

Sensors

Microphone Array: 128 channels MEMS microphone

Frequency Band: 2 kHz to 48 kHz

Dynamic Range: 0.5 dB to 12 dB (user adjustable)

Sound Image

Field of View:

(FOV) Horizontal: 62°

Vertical: 48°

Nominal Frame Rate:

25 fps (min)

Note: frames per second is a measure of how quickly the image on the screen is refreshed each second.

Test Sound Pressure Level Range: 25.7 dBA to 132.5 dBA

Acoustic measurements

Detect distances: 0.3 m to 120 m

Leak detection rate :

1 m 7 bar 0.37 ml/s

10 m 7 bar 0.7 ml/s

Number of digits: 24-bit

Auto max/min dB gain: User-selectable, minimum test bandwidth 1 kHz

Camera

Camera Focal Length: 3.04 mm fixed focal length

Camera Image Field of View (FOV):

Horizontal: 62°

Vertical: 48°

Saved Picture Zoom: Manual

Resolution: 8 megapixels

Display

Resolution: 1024 x 600

Size: 7 inches

Brightness:  Adjustable

Touchscreen: Capacitive touch screen

Standard palettes: Grayscale, Ironbow, Rainbow

Storage

Internal Storage:

8 GB

Storage capacity subject to change based on software version

Image Format: JPG

Audio Format: WAV

Video Format: mp4

Video Length: 5 min

Digital Export: microSD card/USB-C memory stick

Battery

Battery Capacity: 6600 mAH, 7.2 V Rechargeable Li-ion

Battery Life: ~ 4 hours under full load state

Charge:

USB Type-C port

Output: USB-C 5.0 V 3.0 A.

Rated input: 100 240 VAC, 50/60 Hz, 1.2 A

Power Consumption: 29 W max

Energy management: User selectable Sleep/Auto power off
