Mecmesin TSCC Torque Screwdriver Check Calibrator

Torque

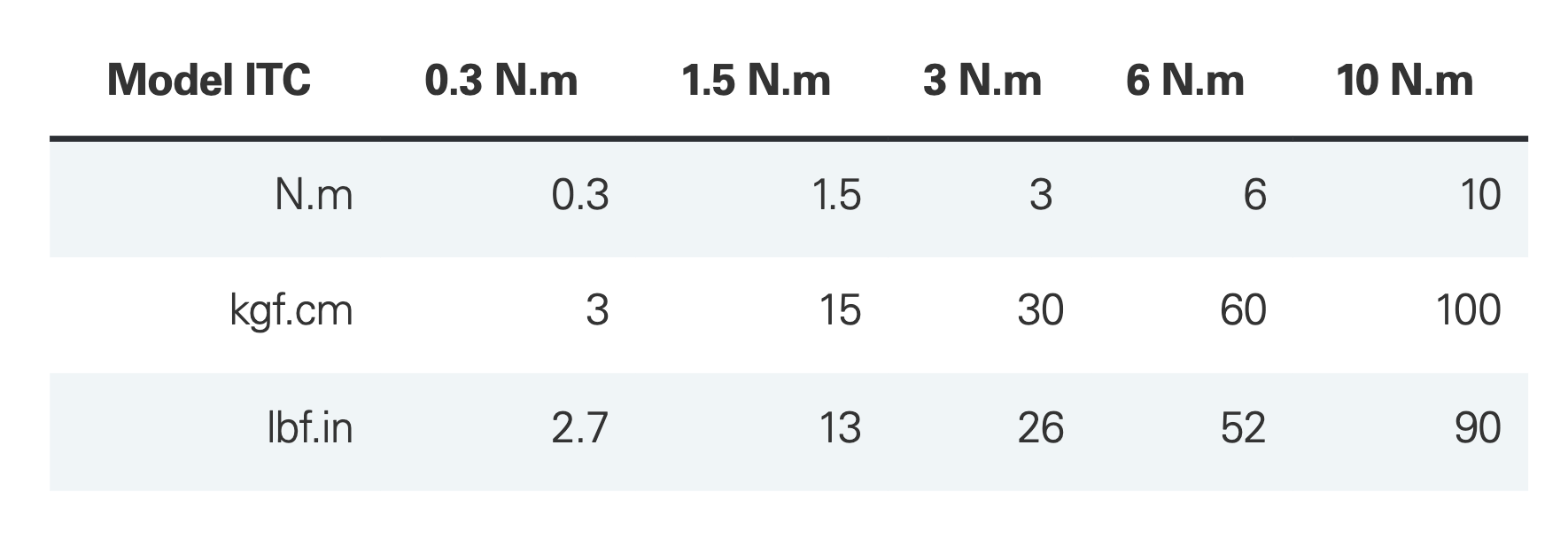

Sensors (ITC): 0.3 N.m to 10 N.m

Accuracy: ±0.5% of full scale

Resolution: 1:6500

Units of measurement: mN.m, N.cm, N.m, kgf.cm, gf.cm, ozf.in, lbf.in, lbf.ft

Angle

Maximum displacement: 2.440 revs

Speed

Speed: 0.1 - 20 rev/min (clockwise or counter-clockwise)

Accuracy: ±1% of indicated speed

Resolution: 0.01 rev/min

Dimension

Maximum headroom: 505 mm (19.9") without mounting tables; 448 mm (17.6") with mounting tables fitted

Maximum travel of adjustable carriage: 182 mm (7.2")

Width between columns: 280 mm (11.02")

Opening span of lower mounting table: 10 - 190 mm (0.39 - 7.5")

Opening span of upper mounting table: 10 - 78 mm (0.39 - 3.07")

Weight: 19.5 kg (43 lb)

Common specifications

Maximum power requirement: 100 W

Voltage: 230 V AC 50 Hz or 110 V AC 60 hz

Operating temperature: 10 - 35°C (50 - 95°F)

Humidity range: Normal industry and laboratory conditions

Compensation for system movement: No

Graphical presentation: Yes
