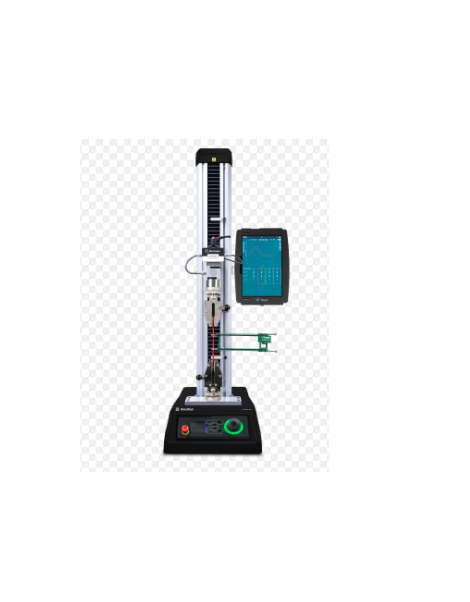

Mecmesin OmniTest Touch 7.5 Universal Testing Machine (7.5 kN / 1686 lbf, Console-driven)

Capacity (kN / lbf): 7.5 kN / 1686 lbf

Resolution: 1:50,000 filtered from 24 bit

Units of measurement: mN, daN, N, kN, gf, kgf, ozf, lbf

Sampling rate: 20 kHz

Data-acquisition rate: 1000 Hz

Displacement

Maximum crosshead travel (between limit switches): 650 mm (25.6'')
Accuracy: ±0.1% of indicated position or ± 0.01mm, whichever is greatest

Resolution: 0.001mm (0.00004")

Speed

Range: 0.01 - 1200 mm/min (0.0004 - 47.2"/min)

Accuracy: Better than ±2% of indicated speed or ± 0.02 mm/min, whichever is greater

Resolution0.001 mm/min (0.0004"/min)

Dimension

Height: 1089 (43'')

Width: 330 mm (13'')

Depth: 570 mm (22.5'')

Weight: 70 kg (155 lbs)

Common specifications

Voltage: 230V AC 50 Hz or 110V AC 60 Hz

Power (max): 120 - 250W

Operating temperature: 10 - 40°C (50 - 104°F)

Humidity range: Normal industry and laboratory conditions, non-condensing 30 - 80% RH
