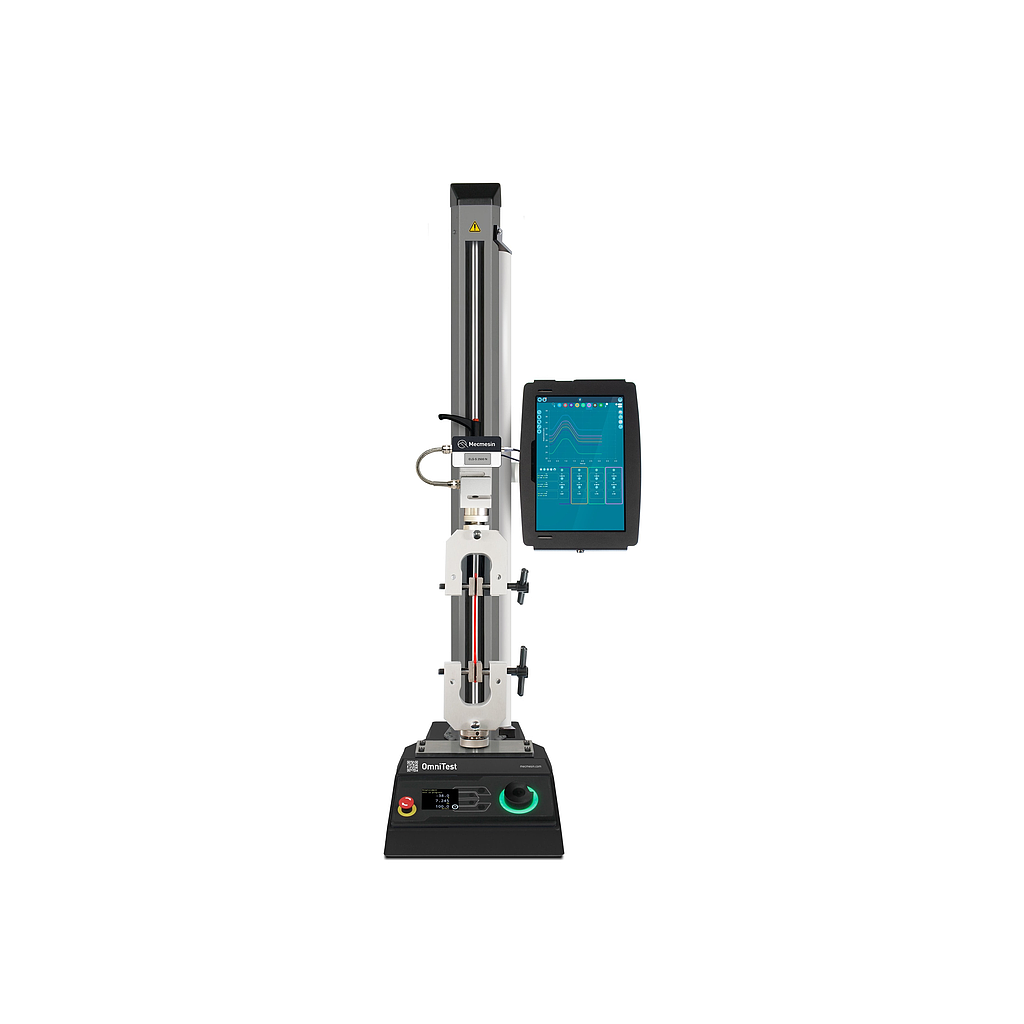

Mecmesin OmniTest Touch 2.5 Universal Testing Machine (2.5 kN / 550 lbf, Console-driven)

Load

Rated capacity: 2.5kN/ 250kgf/ 550lbf

Number of ballscrews: 1

Max data acquisition rate: 1000 Hz

Enhanced Load Cells (ELS)

Accuracy: When calibrated as part of a system, accuracy is ±0.5% of reading down to 2% of range, suitable for use with Class 0.5 systems according to the requirements of ISO 7500-1. Eg, ELS 100 when measuring 10N is accurate to ± 0.05 N or when measuring 50N it is accurate to ± 0.25 N.

Displacement

Maximum crosshead travel (between limit switches): 507 mm (20")

Accuracy: ±0.13mm per 300mm travel

Resolution: 0.001mm (0.00004")

Speed

Range: 0.01 - 1200 mm/min (0.0004 - 47.2"/min)
Accuracy: Better than ±2% of indicated speed or ± 0.02 mm/min (20 µm/min), whichever is greater

Resolution: 0.001 mm/min (0.0004"/min)

Dimensions:

Height: 941 mm (37")

Width: 290 mm (11.4")

Depth: 414 mm (16.3")

Weight: 24 kg (53 lbs)

Common specifications

Voltage: 230V AC 50 Hz or 110V AC 60 Hz

Power (max): 120 - 250W

Operating temperature: 10 - 40°C (50 - 104°F)

Operating relative humidity: non-condensing 30 - 80% RH
