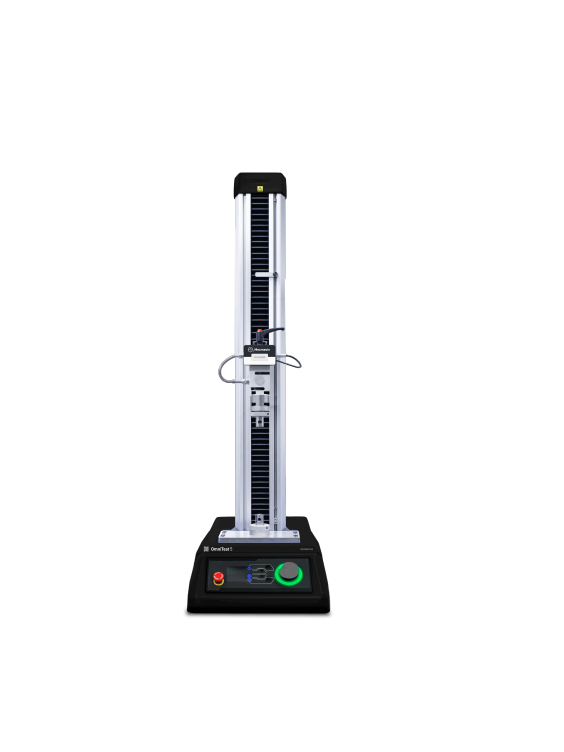

Mecmesin OmniTest 5 Universal Testing Machine (5 kN / 1100 lbf, PC-driven)

Load

Rated capacity: 5kN/ 500kgf/ 1100lbf

Number of ballscrews: 1

Max data acquisition rate: 1000Hz

Enhanced Load Cells (ELS)

When calibrated as part of a system to the requirements of EN ISO 7500-1, suitable for use with Class 0.5 systems down to 2% of range.

Resolution: 1:50,000

Displacement

Crosshead travel: 650 mm (25.6'')
Accuracy: ±0.1% of indicated position or ± 0.01mm, whichever is greatest

Resolution: 0.001mm (0.00004")

Speed

Range: 0.01 - 1200 mm/min (0.0004 - 47.2"/min)

Accuracy: Better than ±2% of indicated speed or ±20 microns/minute, whichever is greater

Resolution: 0.001 mm/min (0.0004"/min)

Dimension

Height: 1089 (43'')

Width: 330 mm (13'')

Depth: 570 mm (22.5'')

Weight: 70 kg (155 lbs)

Common specifications

Voltage: 230V AC 50 Hz or 110V AC 60 Hz

Power (max): 150W

Operating temperature: 10 - 40°C (50 - 104°F)

Humidity range: 30-80% non-condensing
