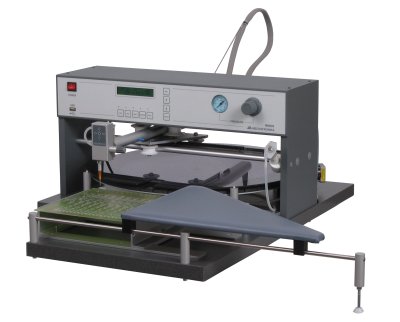

PCB: Placement area 240 × 280 mm
Component Feeder: Bulk material (automatically indexed carousel feeder with 45–90 compartments), manual indexed tape feeders (option), automatic tape feeders (option)
Placing: Component positioning by ACCUPLACE targeting system
Options: Automatic tape feeders, manually indexed tape feeders, data transfer from CAD
Dimensions & Weight: 590 × 810 × 350 mm, 20 kg
Power Supply: 230 V, 50 Hz, 25 W
Air Supply: 0.6 MPa
Semi-Automatic And Manual Mode
Accuplace System Ensures Reliable Components Placing
45- Position Carousel Feeder
Built-In Microprocessor Control Unit With Usb Port For Attaching Data Storage Devices
Teach-In Programming Or Data Transfer From Cad
Interface For Mechatronika Automatic Tape Feeder Blocks
Good Price To Performance Ratio
