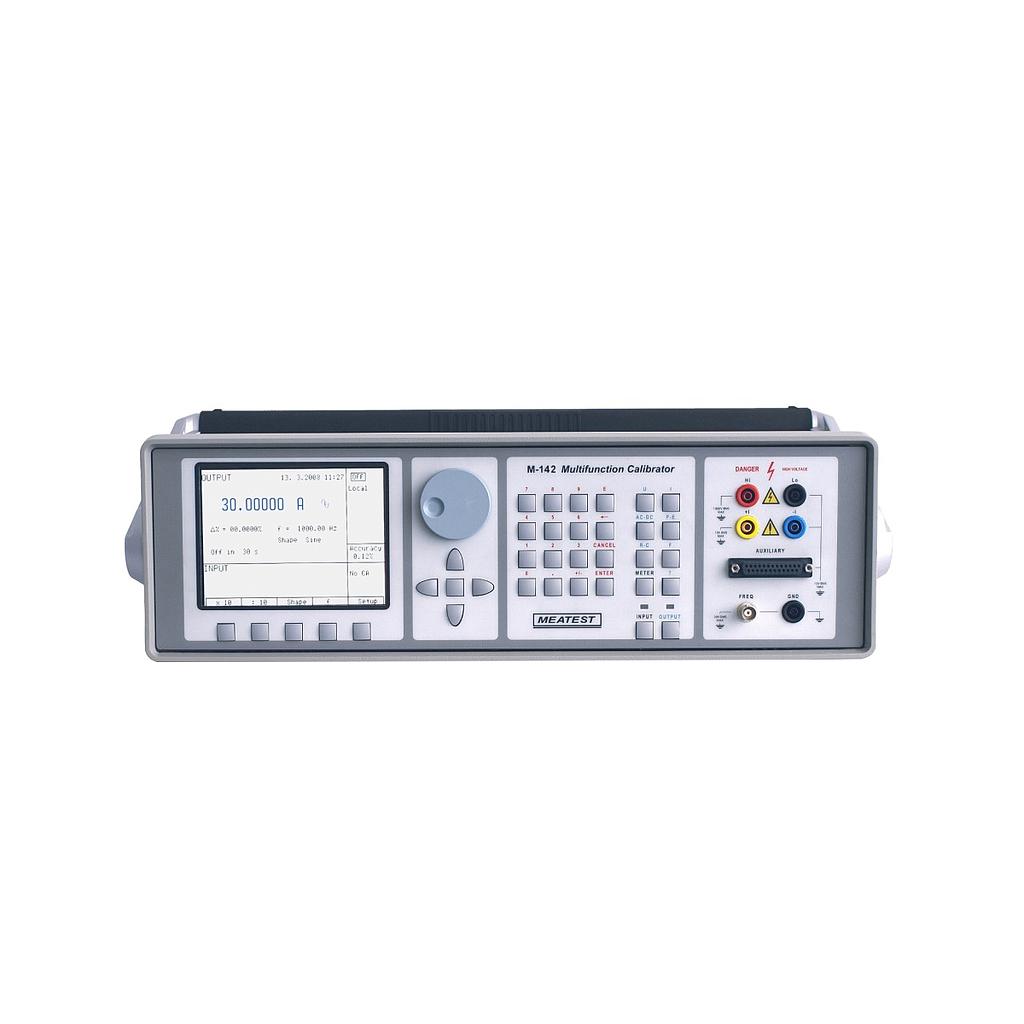

MEATEST M142 Multifunction Calibrator

DC voltage: 0 - 1000 V

± 10 ppm / year

AC voltage: 0 - 1000 V, 20 Hz - 100 kHz

sinusoidal & non-sinusoidal waveforms

± 180 ppm / year

DC current: 0 - 30 A (1500 A with 140-50 Current Coil)

± 100 ppm / year

AC current: 1 uA - 30 A, 20 Hz - 10 kHz (1500 A with 140-50 Current Coil)

sinusoidal & non-sinusoidal waveforms

± 500 ppm / year

DC Power & Energy: 0.4 mW - 4.8 kW (240 kW with 140-50 Current Coil)

1-1999 s

± 510 ppm / year

AC Power & Energy: 0.4 mW - 4.8 kW, 40 - 400 Hz (240 kW with 140-50 Current Coil)

1-1999 s, power factor -1 to +1

± 635 ppm / year

Resistance: 0 Ω - 1 GΩ, resolution 4½ digits

± 100 ppm / year

Capacitance: 700 pF - 100 uF, resolution 4½ digits

± 0.5 % / year

Temperature: TC BEJKNRST with cold junction compensation

RTD ± 0.07°C / year

Frequency: 0.1 Hz - 20 MHz

± 50 ppm / year

Process Multimeter

DC voltage: 0 - 20 V

mVDC resolution down to 100 nV

± 100 ppm / year

DC current: 0 - 25 mA

± 150 ppm / year

Resistance: 0 Ω - 2.5 kΩ, resolution 4½ digits

± 200 ppm / year

Temperature: TC BEJKNRST

RTD ± 0.1°C / year

Frequency: 1 Hz - 15 kHz

± 50 ppm / year

Accessories: Adapter 140-01, Current Coil 140-50, Adapter 40, Adapter 60
