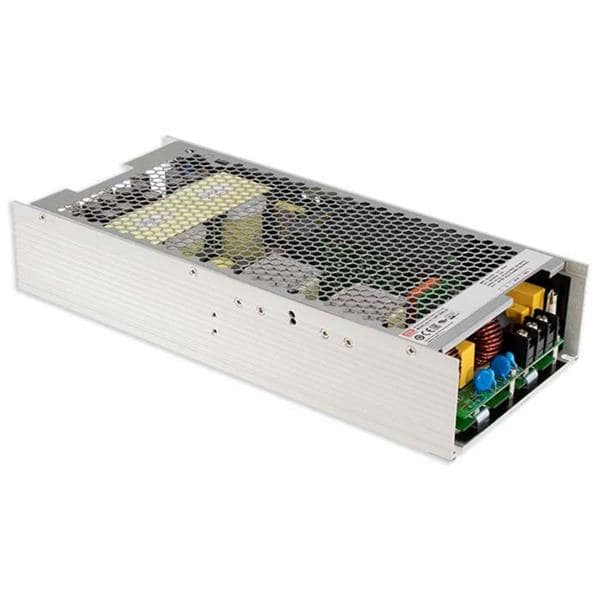

MEAN WELL UHP-2500-24 Conduction Cooling with PFC 2500.8W 24V 104.2A Enclosed

Width: 140 mm (5.512 in)

Height: 60 mm (2.362 in)

Length: 310 mm (12.205 in)

Industry: Industrial

Approvals: TUV EN62368-1, UL62368-1, EN61558-1, EN60335-1

Efficiency: 95 %

Unit Weight: 3.5 kg

Output Power: 2.5 kW

Input Voltage: 90 VAC to 264 VAC, 250 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 500 VDC

Number of Outputs: 1 Output

Power - Convection: 2.5008 kW

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 104.2 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
