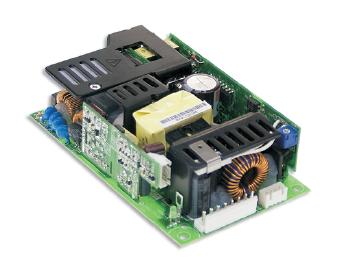

MEAN WELL RPS-160-48 Switching Supplies 161W 48V 3.25A W/PFC Function

Width: 76.2 mm (3 in)

Height: 34.6 mm (1.362 in)

Length: 127 mm (5 in)

Industry: Medical

Approvals: EN60601-1, EN60950-1

Compliance: EN60601-1, EN60950-1

Efficiency: 88 %

Unit Weight: 320 g

Output Power: 156 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Power - Convection: 113.4 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.25 A

Output Voltage-Channel 1: 48 VDC
