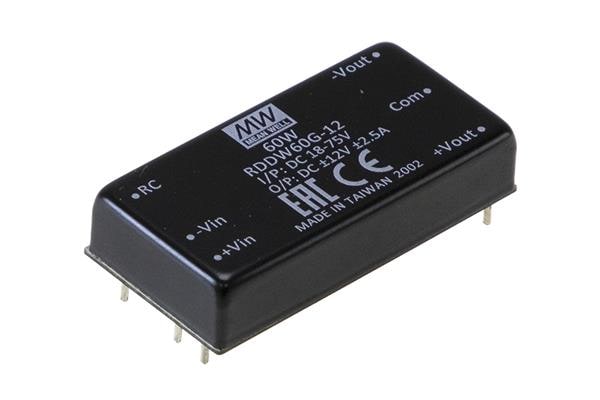

MEAN WELL RDDW60G-12 Isolated 60W 18-75Vin +/-12V 2x1 Iso +/-2.5A

Width: 25.4 mm (1 in)

Height: 10.5 mm (0.413 in)

Length: 50.8 mm (2 in)

Industry: Industrial

Compliance: EN50155

Application: Dual Output

Unit Weight: 37.600 g

Output Power: 60 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 1.6 kV

Number of Outputs: 2 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 2.5 A

Output Current-Channel 2: 2.5 A

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
