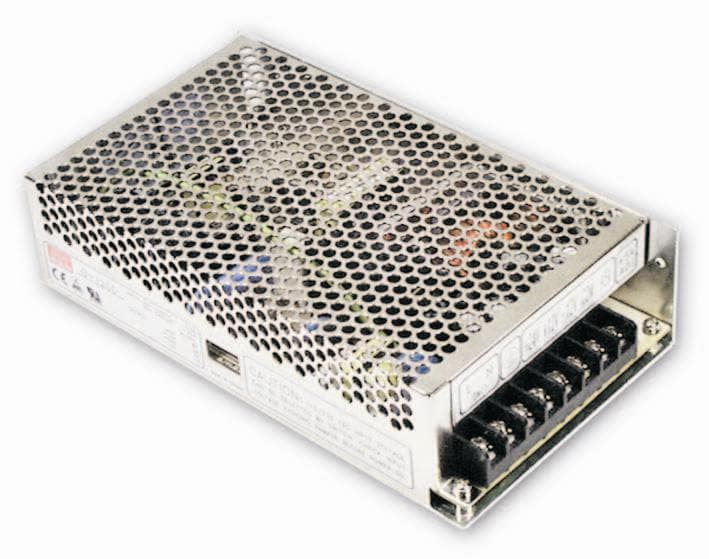

MEAN WELL QP-320D Switching Supplies 5V20A 12V10A 24V3A -12V2A 316W

Width: 115 mm

Height: 50 mm

Length: 215 mm

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 1.2 kg

Output Power: 316 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 4 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Current-Channel 2: 10 A

Output Current-Channel 3: 3 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: 24 VDC
