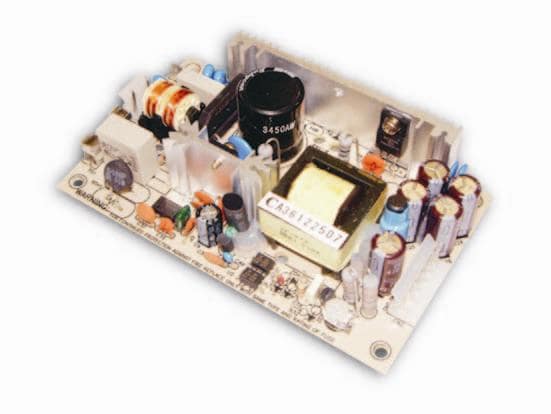

MEAN WELL PT-45A Switching Supplies 40.5W 5 12 -5V Open Frame

Width: 76.2 mm (3 in)

Height: 27.94 mm (1.1 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 210 g

Output Power: 40.5 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3 A

Output Current-Channel 2: 2 A

Output Current-Channel 3: 300 mA

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 5 VDC
