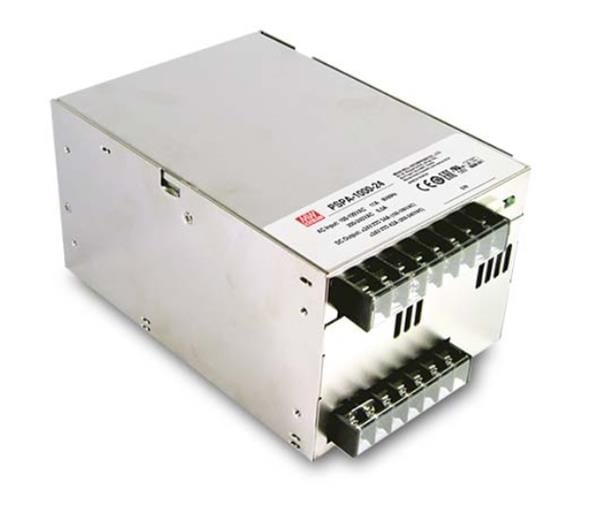

MEAN WELL PSPA-1000-15 PFC and Parallel Function 960W 15V 64A W/PFC and Parallel

Width: 120 mm (4.724 in)

Height: 93 mm (3.661 in)

Length: 170 mm (6.693 in)

Industry: Industrial

Approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004

Compliance: UL62368-1; TUV EN62368-1; EAC TP TC 004

Efficiency: 93 %

Unit Weight: 2 kg

Output Power: 960 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 64 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
