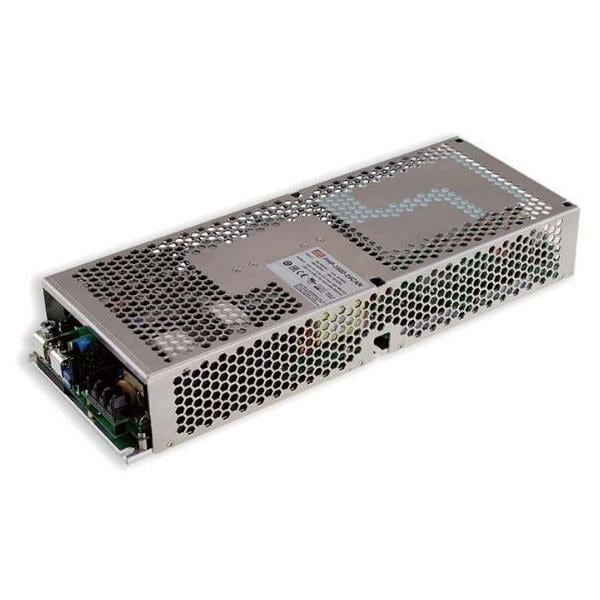

MEAN WELL PHP-3500-230 Switching Supplies 3500W 230V 15.2A

Width: 141.4 mm (5.567 in)

Height: 60 mm (2.362 in)

Length: 380 mm (14.961 in)

Industry: Industrial

Dimensions: 380 mm x 141.4 mm x 60 mm

Efficiency: 95 %

Unit Weight: 4.5 kg

Output Power: 3.5 kW

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 15.2 A

Output Voltage-Channel 1: 230 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
