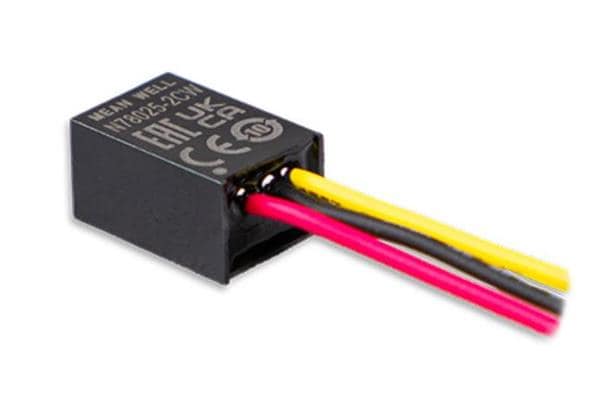

MEAN WELL N7805-2CW Non-Isolated / PoL 8-32Vin 5Vout 2A with Wires Switching Regulator

Width: 11.5 mm (0.453 in)

Height: 9 mm (0.354 in)

Length: 17.5 mm (0.689 in)

Industry: Industrial

Output Type: Positive, Negative

Unit Weight: 5.500 g

Output Power: 3.6 W to 30 W

Number of Outputs: 2 Output

Input Voltage - Max: 32 V

Input Voltage - Min: 8 V

Input Voltage, Nominal: 12 V, 24 V

Output Current-Channel 1: 2 A

Output Current-Channel 2: 1 A

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: - 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
