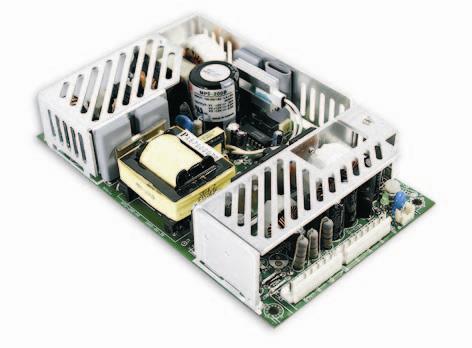

MEAN WELL MPQ-200F Switching Supplies 199W 5V/15A 24V/2.7A 15V/2A -15V/2A

Width: 107.2 mm (4.22 in)

Height: 35.5 mm (1.398 in)

Length: 177.8 mm (7 in)

Industry: Medical, Industrial

Approvals: EN60601-1, EN60950-1

Compliance: EN60601-1, EN60950-1

Unit Weight: 660 g

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Number of Outputs: 4 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 15 A

Output Current-Channel 2: 2.7 A

Output Current-Channel 3: 2 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: 24 VDC
