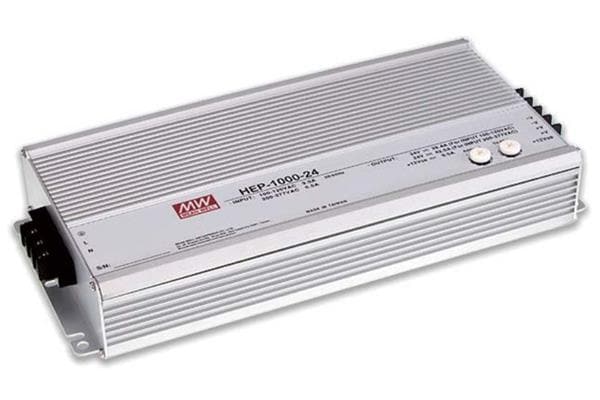

MEAN WELL HEP-1000-24 AC-DC Converter 1008W 24V 42A PMBus

Width: 144 mm (5.669 in)

Height: 48.5 mm (1.909 in)

Length: 310 mm (12.205 in)

Industry: Industrial

Approvals: UL/EN62368-1, EN55032/55024

Efficiency: 95 %

Unit Weight: 4 kg

Output Power: 1.008 kW

Input Voltage: 90 VAC to 305 VAC, 250 VDC to 431 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 500 V

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 42 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
