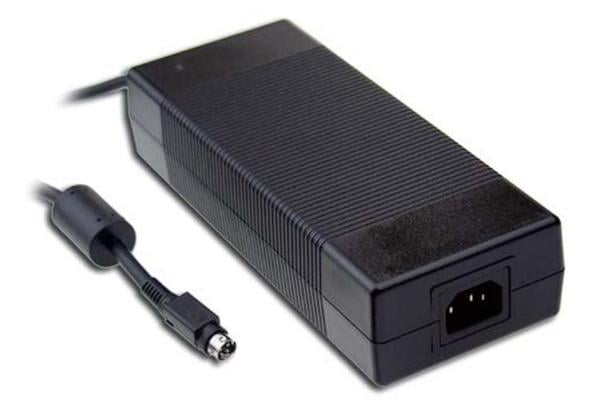

MEAN WELL GST220A36-R7B Desktop AC Adapters 36V6.1A;16AWG/100cm,DIN 4PIN

Width: 85 mm

Height: 46 mm

Length: 210 mm

Region: Universal

Industry: Industrial

Approvals: AS/NZS, BIS, BSMI, CCC GB4943, CSA, EAC TP TC, KC, TUV, UL

Compliance: AS/NZS, BIS, BSMI, CCC GB4943, CSA, EAC TP TC, KC, TUV, UL

Efficiency: Level VI

Unit Weight: 1.1 kg

Output Power: 219.6 W

AC Inlet Type: C14

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Connector Type: DIN Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: 4 Pin DIN Plug

DC Output Cord Length: 1 m

Output Current-Channel 1: 6.1 A

Output Voltage-Channel 1: 36 V

AC Plug included/required: Required

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
