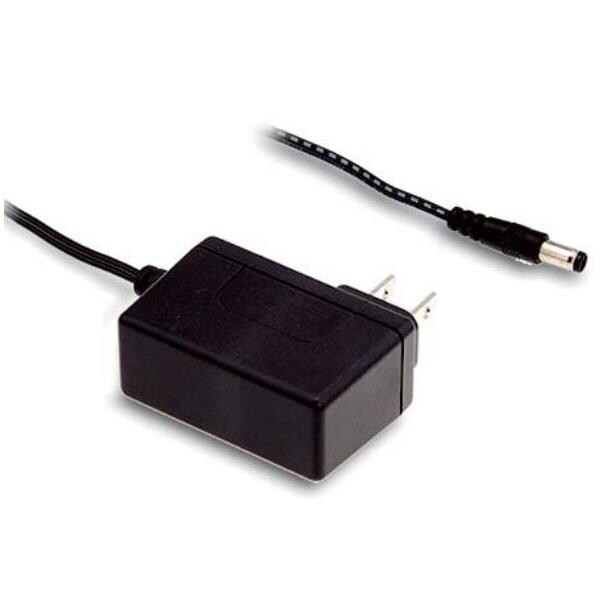

MEAN WELL GSM12U24-P1J Fixed Plugs 12W 24V 0.5A Medical US 2.1x5.5

Region: North America

Industry: Medical

Efficiency: Level VI

Unit Weight: 109 g

Output Power: 12 W

Input Voltage: 80 VAC to 264 VAC, 113 VDC to 370 VDC

Connector Type: Barrel Connector

Mounting Style: Wall Mount

Load Regulation: Regulated

Center Pin Length: 11.5 mm

Number of Outputs: 1 Output

DC Output Connector: 2.1 mm Barrel Plug (2.1x5.5)

DC Output Cord Length: 1.8 m

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 24 VDC

AC Plug included/required: Included

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
