Product image

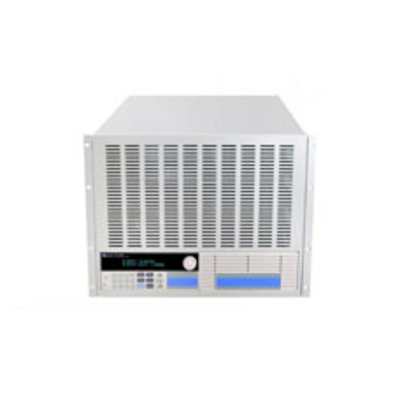

Maynuo M9718F DC electronic load (0-480A/0-150V/0-6000W)

ManufacturerMAYNUO(View more products from this manufacturer)
ModelM9718F
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Power:6000W
Current:0-480A
Voltage:0-150V
Size:408*428*453.5mm
Weight:70kg

Model M9718F
Input Rating Power 6000W
Current 0-480A
Voltage 0-150V
CC Mode Range 0-48A 0-480A
Resolution 1mA 10mA
Accuracy 0.1%+0.15%FS 0.1%+0.15%FS
CV Mode Range 0.1-19.999V 0.1-150V
Resolution 1mV 10mV
Accuracy 0.03%+0.02%FS 0.03%+0.02%FS
  CR Mode   (Voltage and current input value >=10% full measurement) Range 0.3-10K Oh 0.3-5K Oh
Resolution 16 bit 16 bit
Accuracy 0.1%+0.1%FS 0.2%+0.15%FS
  CW Mode   (Voltage and current input value >=10% full measurement) Range 0-6000W 0-6000W
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.2%+0.15%FS
Voltage Measurement Voltage 0-19.999V 0-150V
Resolution 0.1mV 1mV
Accuracy 0.015%+0.03%FS 0.015%+0.03%FS
Current Measurement Current 0-48A 0-480A
Resolution 0.1mA 1mA
Accuracy 0.08%+0.1%FS 0.2%+0.15%FS
Power Measurement(Voltage and current input value >=10% full measurement) Power 100W 6000W
Resolution 1mW 10mW
Accuracy 0.1%+0.2%FS 0.2%+0.15%FS
Battery Test

Battery Input:0.5-120V;Max. Measurement:Capacity=999AH;Resolution=0.1mA; Time Range=1S-16H
Dynamic Test

Dynamic List: 0-25kHZ; 2.5A/uS;  T1&T2:60uS-999S;  Accuracy:+15% offset+10%FS
Current soft-startup Time

1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS   Accuracy:+15% offset+10%FS
Short Circuit Current(CC) =52.8A =528A
Voltage(CV)  0V
Resistance(CR) =5mOh
Temperature Operating 0~40oC
Nonoperating -10oC~70oC
Dimension W*H*D(mm) 408*428*453.5
Weight Kg 70

Features:

  • Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
  • Over current, over voltage, over power, over heat, polarity reversed protection
  • High-luminance VFD screen with two lines& four channels display
  • Intellegent fan system fan will be automatically initiated according to the temperature
  • Soft start time setting, carrying the power supplier according to the voltage value set
  • Battery testing and short-circuit function
  • Available of dynamic testing and rising edge and falling edge setting
  • Supporting external trigger input and output
  • External current waveform monitor terminal
  • Supporting remote voltage compensation and multidata storage
  • Power-on-self-test, software calibration and standard rack mount
  • Communication mode: RS232/RS485/USB.

Application:

    Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research insititutes, automotive electronics, aeronautics and astronautics,ships, solar cells fule cell, etc.
