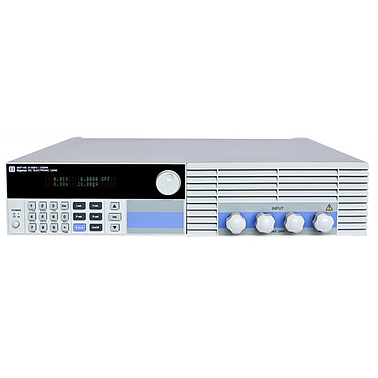

DC electronic load Maynuo M9713 (0-120A/0-150V/600W)

Name: DC electronic load Maynuo M9713 (0-120A/0-150V/600W)
Brand: MAYNUO

ManufacturerMAYNUO(View more products from this manufacturer)

ModelM9713

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power: 600W
Current: 0-120A
Voltage: 0-150V
Size: 428 * 103 * 453.5mm
Weight: 3.5kg

Model	M9713
Input Rating	Power	600W
	Current	0-120A
	Voltage	0-150V
CC Mode	Range	0-12A	0-120A
	Resolution	1mA	10mA
	Accuracy	0.05%+0.05%FS	0.1%+0.05%FS
CV Mode	Range	0.1-19.999V	0.1-150V
	Resolution	1mV	10mV
	Accuracy	0.03%+0.02%FS	0.03%+0.02%FS
CR Mode (Voltage and current input value >=10% full measurement)	Range	0.03-10K Oh	0.03-5K Oh
	Resolution	16 bit	16 bit
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
CW Mode (Voltage and current input value >=10% full measurement)	Range	0-600W	0-600W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Voltage Measurement	Voltage	0-19.999V	0-150V
	Resolution	1mV	10mV
	Accuracy	0.015%+0.03%FS	0.015%+0.03%FS
Current Measurement	Current	0-12A	0-120A
	Resolution	0.1mA	1mA
	Accuracy	0.05%+0.05%FS	0.1%+0.08%FS
Power Measurement(Voltage and current input value >=10% full measurement)	Power	100W	600W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Battery Test	Battery Input:0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H
Dynamic Test	Transition Lsit: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS
Current soft-startup Time	1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500mS;1000mS Accuracy:+15% offset+10%FS
Short Circuit	Current(CC)	=13.2A	=132A
	Voltage(CV)	0V
	Resistance(CR)	=13mOh
Temperature	Operating	0~40^oC
Temperature	Nonoperating	-10^oC~70^oC
Dimension	WHD(mm)	428103.5453.5
Weight	Kg	17.6

Features:

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
Over current, over voltage, over power, over heat, polarity reversed protection
High-luminance VFD screen with two lines& four channels display
Intellegent fan system fan will be automatically initiated according to the temperature
Soft start time setting, carrying the power supplier according to the voltage value set
Battery testing and short-circuit function
Available of dynamic testing and rising edge and falling edge setting
Supporting external trigger input and output
External current waveform monitor terminal
Supporting remote voltage compensation and multidata storage
Power-on-self-test, software calibration and standard rack mount
Communication mode: RS232/RS485/USB.

Application:

Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research insititutes, automotive electronics, aeronautics and astronautics,ships, solar cells fule cell, etc
