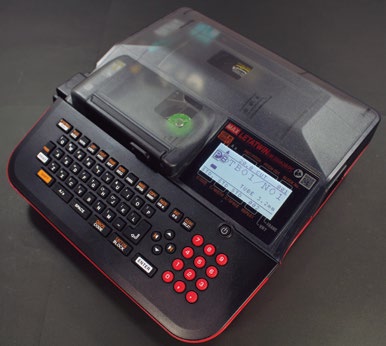

MAX LM-550A2/PC Electronic Lettering Machine

Dimensions: 3.7”(H) x 11.61”(W) x 11.54”(L) mm

Weight: 5.3 lbs

Printing Method: Thermal Transfer Method (300dpi)

Display: LCD Dot Matrix: 64×160 pixel (Backlit)

Printing Speed: 40 mm / sec (Standard) 20mm / sec (Low-temperature Mode)

Maximum Printing Length: Tube: 100m; Tape: 5m

By multiple copy printing, maximum 30 copies up to - Tube: 100m; Tape: 7m

Maximum Output: 5000 Characters / File Characters

Character Size: 1.3, 2, 3, 4, 6 mm Height

Usable Tube: Ø1.5 to 8 mm (PVC Tube)

Ø2 to 6.5 mm (Heat Shrink Tube)

(For Grip Tube φ1.5 – 2.0mm tubes, the dedicated attachment is required.)

Usable Tape: Width 5, 9, 12 mm (MAX Genuine Tape)

Tube Cutting Method: Auto Half Cut, Manual Full Cut

Internal Memory: 250,000 characters (Maximum 50 files)

External Memory: USB Memory

Interface: USB 2.0 Full Speed

Power Supply: DC12V, 4.2A Use only specified AC Adapter (100V – 240V) / 4 AA batteries

Power Consumption: Max 40W

Operating Environment: 10 to 35°C
