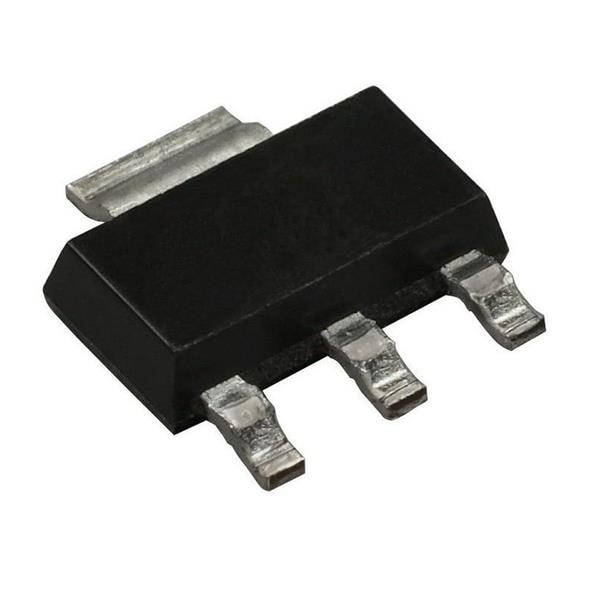

MaxLinear SPX3940AM3-L-3-3/TR Positive Voltage Regulator 1.0A LW DROPOUT VLT 1.5A PEAK OUTPT CURR
Manufacturer: MaxLinear Model: SPX3940AM3-L-3-3/TR - Contact
Width: 3.5 mm
Height: 1.6 mm
Length: 6.5 mm
Polarity: Positive
Output Type: Fixed
Unit Weight: 250 mg
Mounting Style: SMD/SMT
Output Current: 1 A
Output Voltage: 3.3 V
Dropout Voltage: 280 mV
Line Regulation: 0.2 %
Load Regulation: 0.3 %
Number of Outputs: 1 Output
Quiescent Current: 18 mA
Reference Voltage: 1.24 V
Input Voltage - Max: 16 V
Input Voltage - Min: 3.1 V
Dropout Voltage - Max: 550 mV
Voltage Regulation Accuracy: 1 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
