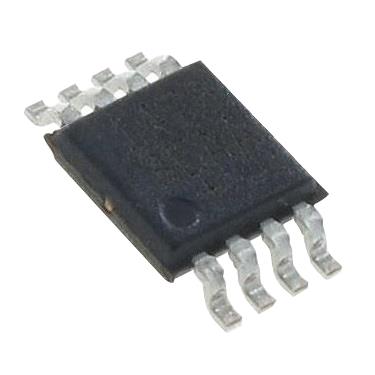

Maxim Integrated MAX144BCUA+ ADCs - Analog to Digital Converters +2.7V, Low-Power, 2-Channel, 108ksps, Serial 12-Bit ADCs in 8-Pin MAX
Manufacturer: Maxim Integrated Model: MAX144BCUA+ - Contact
Width: 3.1 mm
Height: 0.95 mm
Length: 3.1 mm
Input Type: Single-Ended
Resolution: 12 bit
Unit Weight: 24.600 mg
Architecture: SAR
Sampling Rate: 108 kS/s
Interface Type: SPI
Mounting Style: SMD/SMT
Reference Type: External
Reference Voltage: 5.25 V
Number of Channels: 2 Channel
Number of Converters: 1 Converter
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 2.7 V
Pd - Power Dissipation: 330 mW
Operating Supply Voltage: 2.7 V to 5.25 V
INL - Integral Nonlinearity: +/- 1 LSB
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
DNL - Differential Nonlinearity: +/- 0.75 LSB
